2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE
Gauge Control Module Replacement
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).

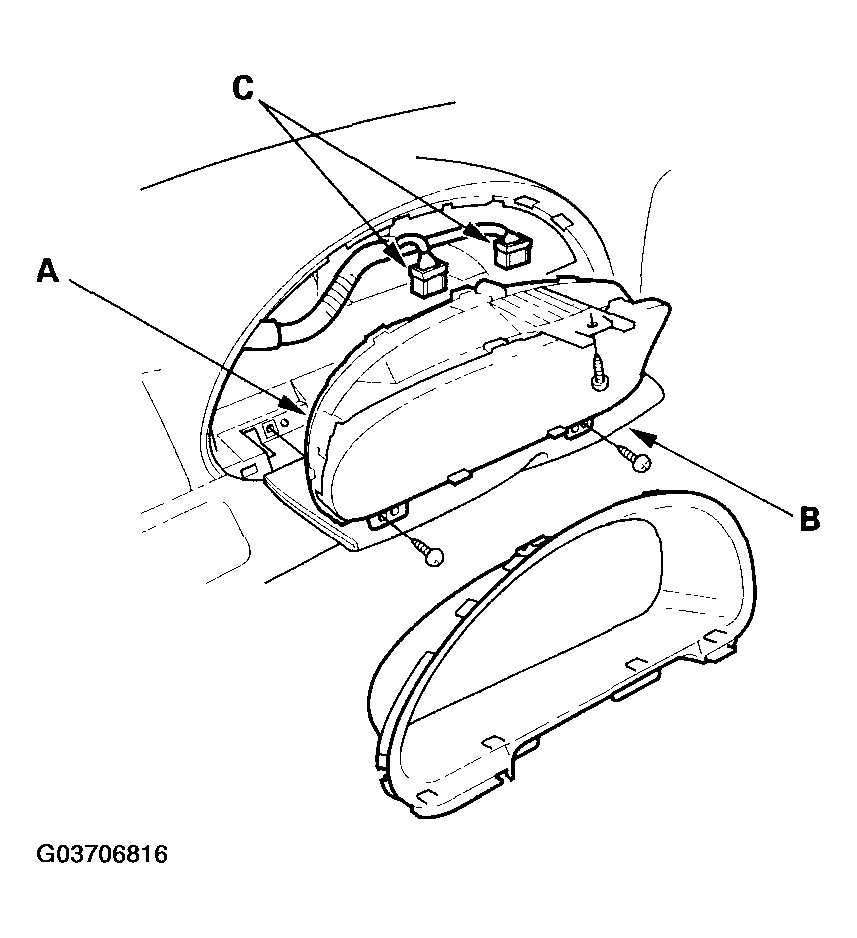

- Remove the screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.
- Disconnect the connectors (C), and remove the gauge control module.
- Install the gauge in the reverse order of removal.
