2002 Honda Civic SiFACTORY OEM SERVICE PROCEDURE

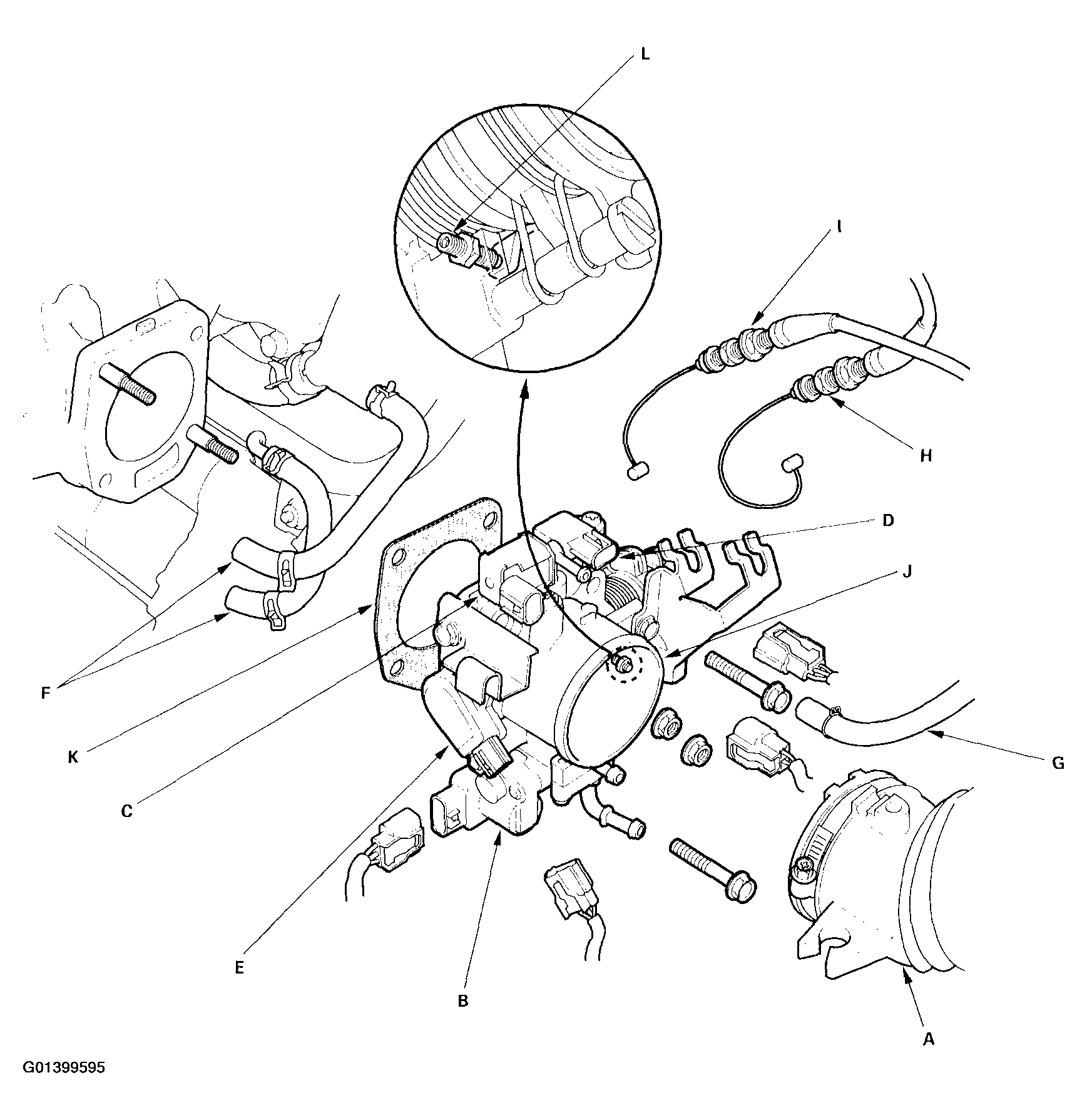

Throttle Body Removal/Installation
- Remove the intake air duct (A).
- Disconnect the connectors from the IAC valve (B), EVAP canister purge valve (C), MAP sensor (D), and TP sensor (E).
- Disconnect the water bypass hoses (F), and plug the water bypass hoses.
- Disconnect the vacuum hoses (G).
- Remove the throttle cable (H) and the actuator cable (with cruise control) (I).
- Remove the throttle body (J).
- Install the parts in the reverse order of removal with a new gasket (K), then recheck these items:
- Do not adjusting the throttle stop screw (L).
- Do the ECM idle learn procedure after throttle body has been replaced (see ECM IDLE LEARN PROCEDURE ).
- Refill the radiator with engine coolant (see COOLANT REPLACEMENT ).
