2002 Honda CR-V EX, StandardFACTORY OEM SERVICE PROCEDURE
Idle Speed Inspection
NOTE:
- Leave the idle air control (IAC) valve connected.
- Before checking the idle speed, check these items:
- The malfunction indicator lamp (MIL) has not been reported on.
- There are no vacuum leaks
- Ignition timing
- Throttle cable adjustment
- Spark plugs
- Air cleaner
- PCV system
- Pull the parking brake lever up. Start the engine, and make sure the headlights are off.
- Disconnect the evaporative emission (EVAP) canister purge valve 2P connector.

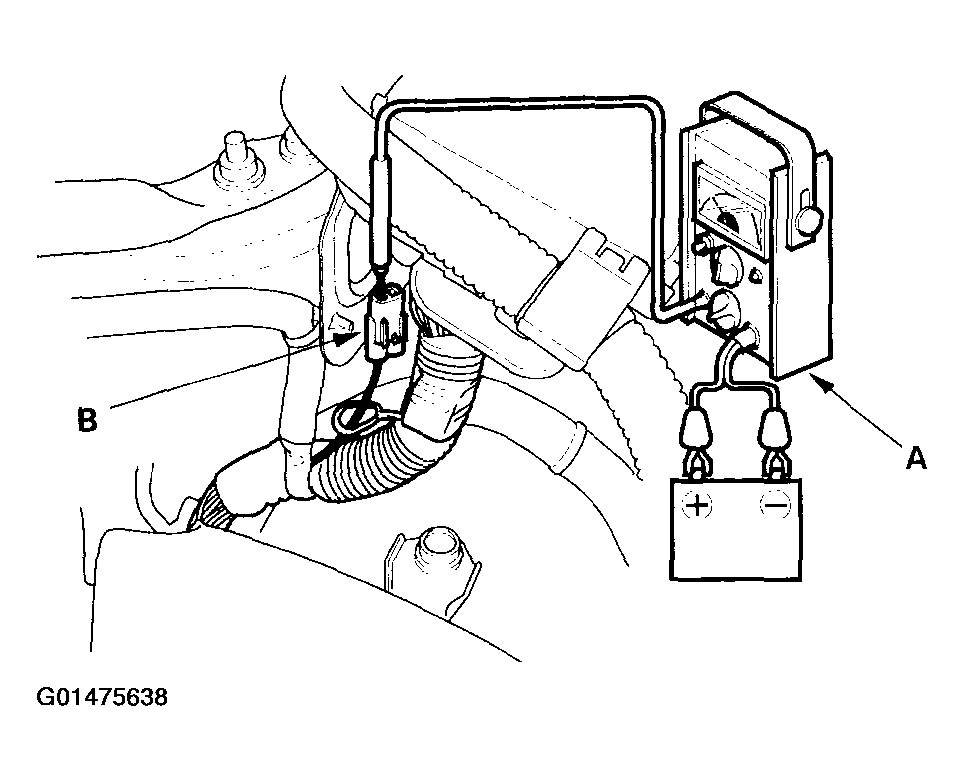

- Connect a tachometer (A) to the test tachometer connector (B), or connect the HDS or a scan tool to the data link connector (DLC) (C) located under the driver's side of the dashboard.
