Removal & Installation

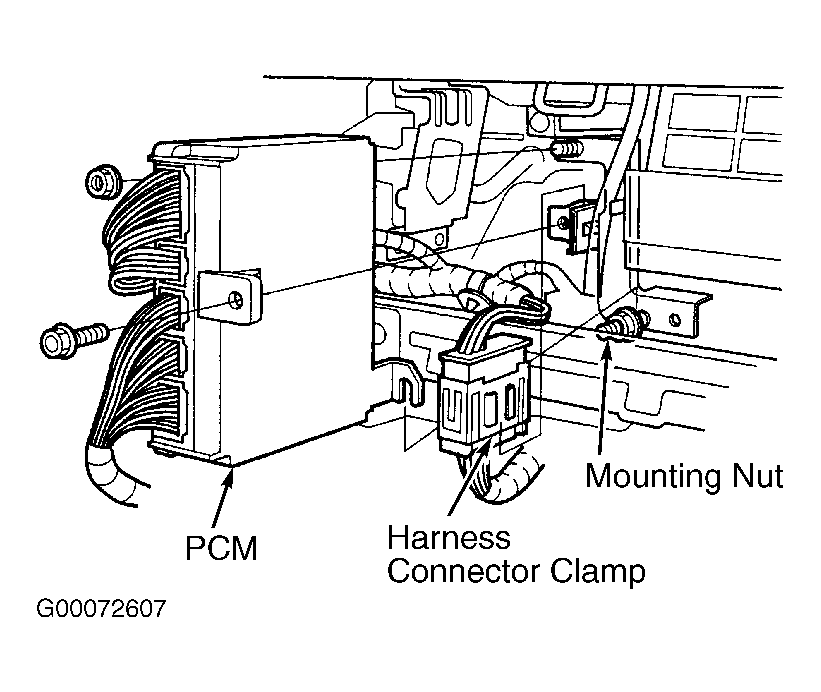

PCM is located behind glove box. See Figure. Remove glove box stops, then open glove box. Remove harness connector clamp from bracket. Loosen mounting nut on lower right side of PCM. Remove mounting bolt and nut on left side of PCM. Lift PCM up to clear mounting nut on lower right side of PCM. Pull PCM outward. See Fig 1. Disconnect PCM harness connectors. To install, reverse removal procedure. Tighten bolts to 106 INCH lbs. (12 N.m) specification.
