2002 Honda CR-V EX, AutomaticFACTORY OEM SERVICE PROCEDURE
Injector Replacement
- Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).

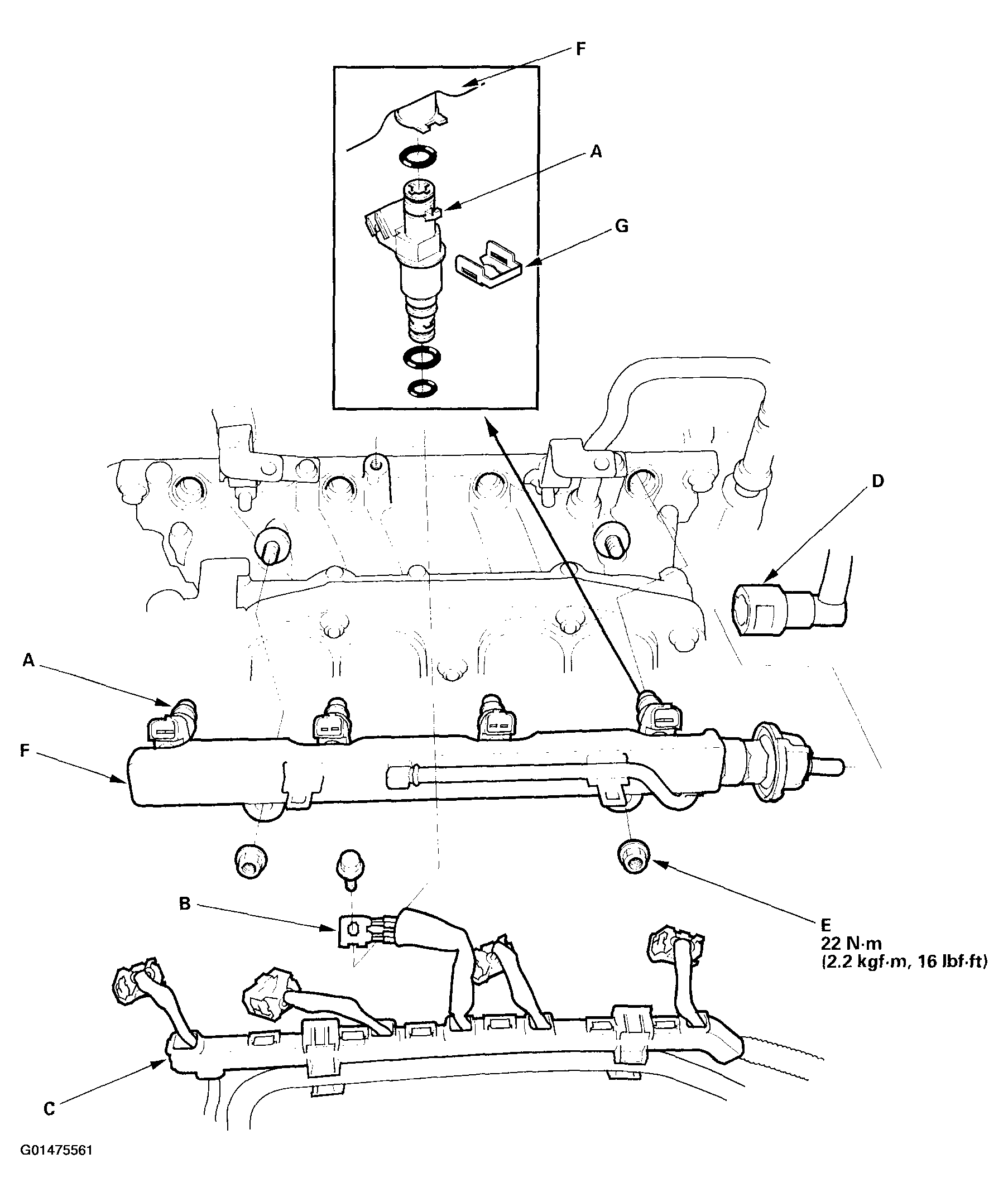

- Disconnect the connectors from the injectors (A), then remove the ground cable (B) and the harness holder (C).
- Disconnect the quick-connect fitting (D).
- Remove the fuel rail mounting nuts (E) from the fuel rail (F).
- Remove the injector clip (G) from the injector.
- Remove the injector from the fuel rail.

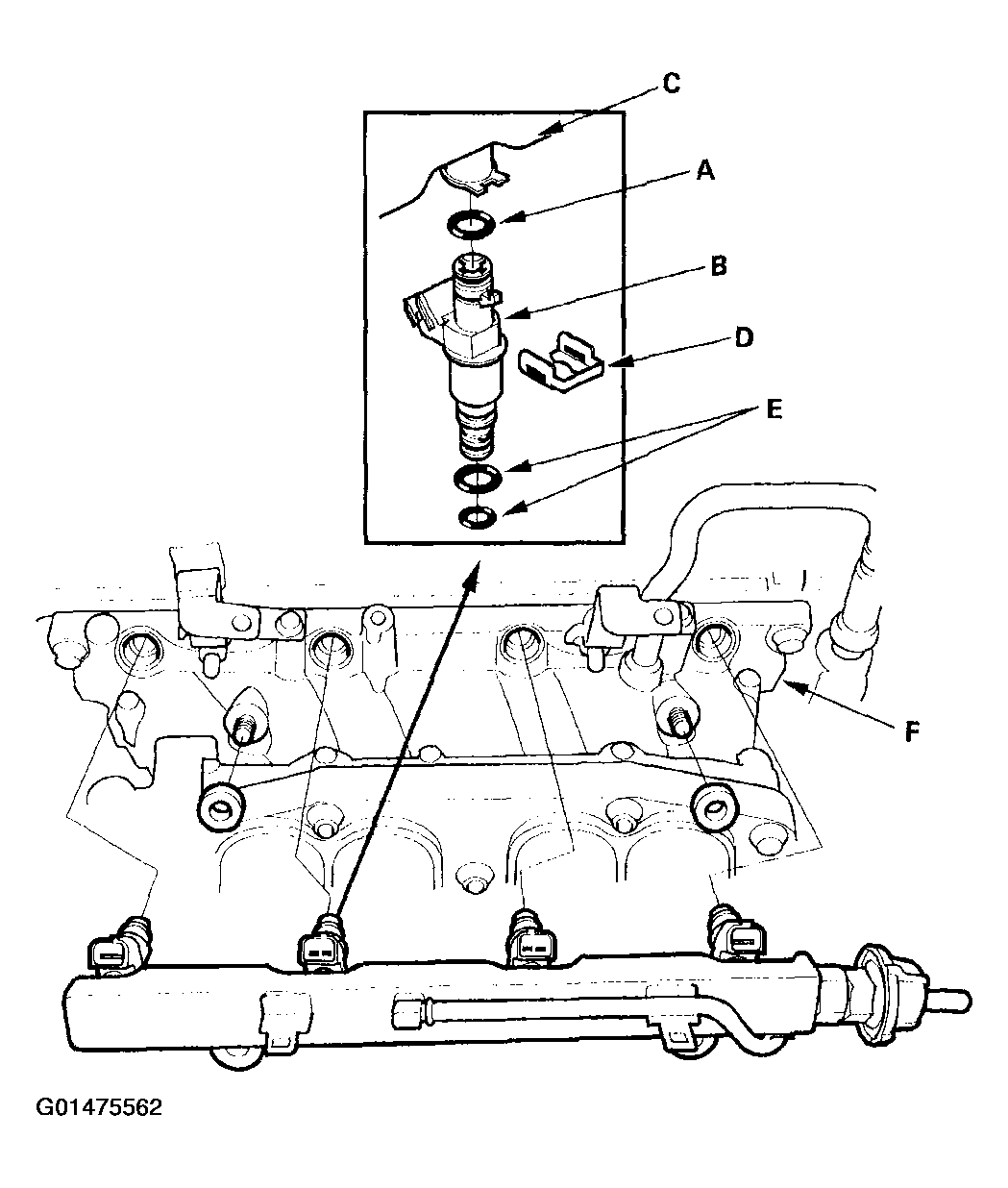

- Coat the new O-rings (A) with clean engine oil, and insert the injectors (B) into the fuel rail (C).
- Install the injector clip (D).
- Coat the injector O-rings (E) with clean engine oil.
- Install the injectors in the injector base (F).
- Install the fuel rail mounting nuts.
- Connect the connectors on the injectors, then install the ground cable and the harness holder.
- Connect the quick-connect fitting.
- Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs for about 2 seconds, the fuel pressure in the fuel line rises. Repeat this two or three times, then check for fuel leakage.
