2001 Honda Prelude Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Ignition Switch Test: S2000

Disconnect negative battery cable. Disconnect 7-pin connector from steering column harness. Using an ohmmeter, check continuity between specified connector terminals, with ignition switch in appropriate position. See Fig 1 and Fig 2 . If continuity is not as specified, replace ignition switch.

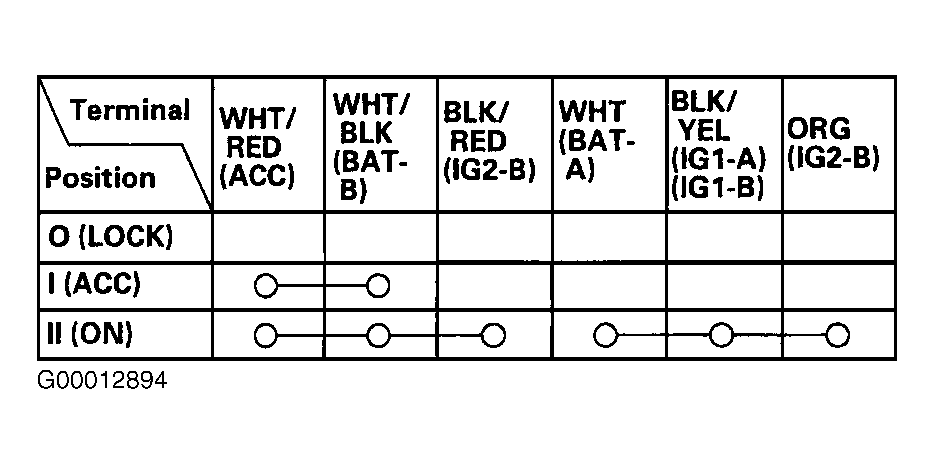

Fig 1: Testing Ignition Switch Continuity (S2000)

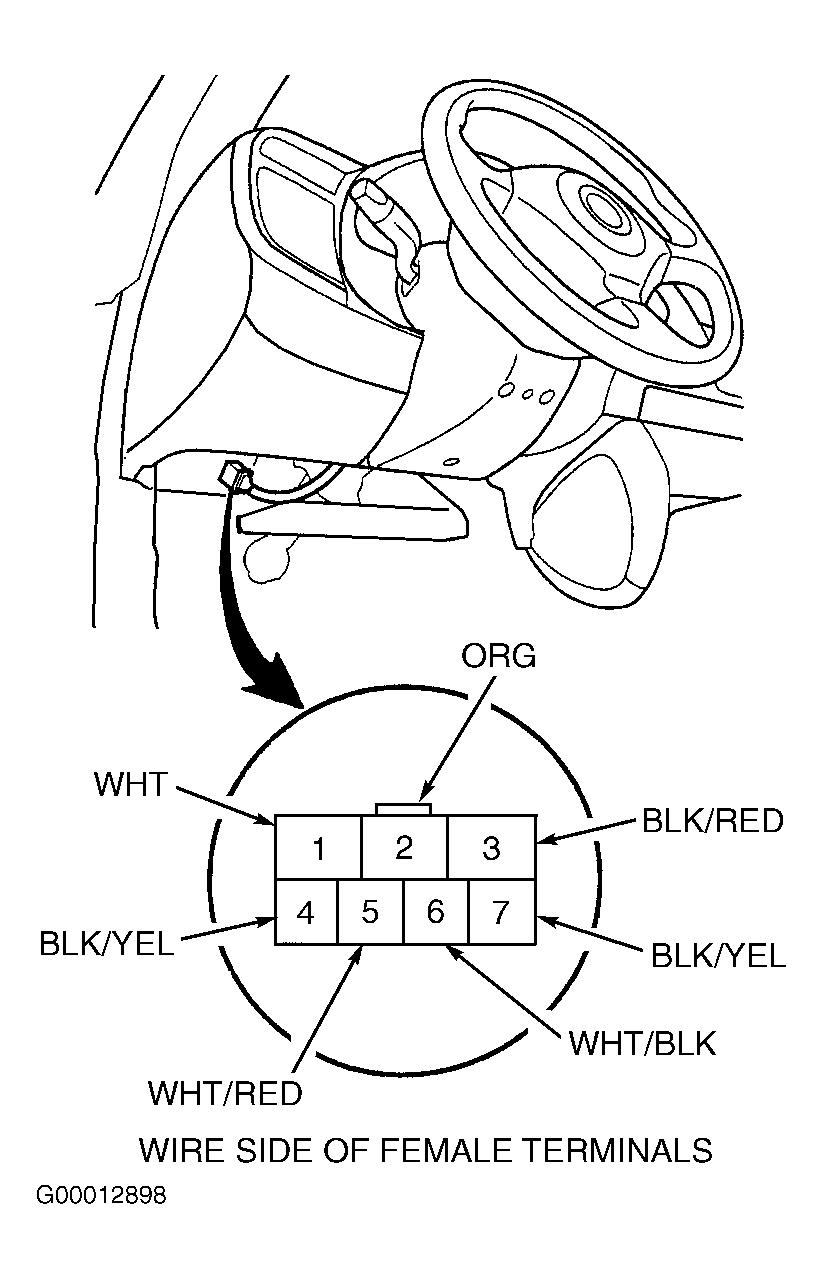

G00012898Courtesy of AMERICAN HONDA MOTOR CO., INC.
