2001 Honda Odyssey LX
Float Test
2001 Honda Odyssey LXSECTION Float Test
- Make sure the fuel tank is less than half full.
- Remove the fuel fill cap to relieve the fuel tank pressure, then reinstall the cap.

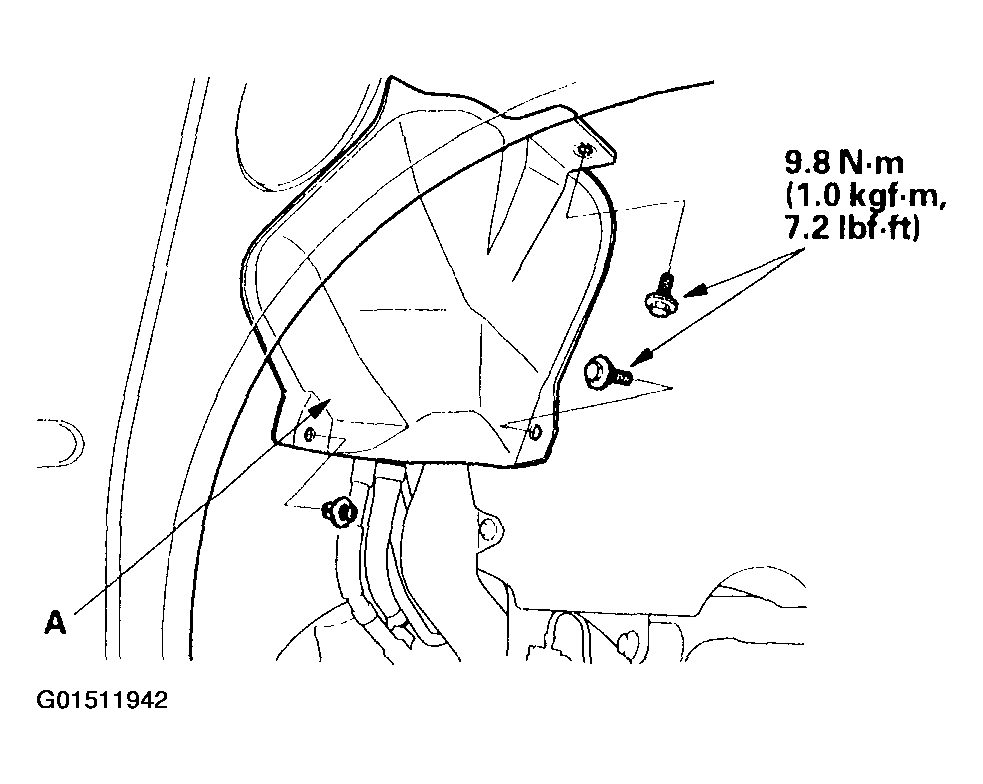

- Remove the bolts and fuel tank vapor control valve cover (A).

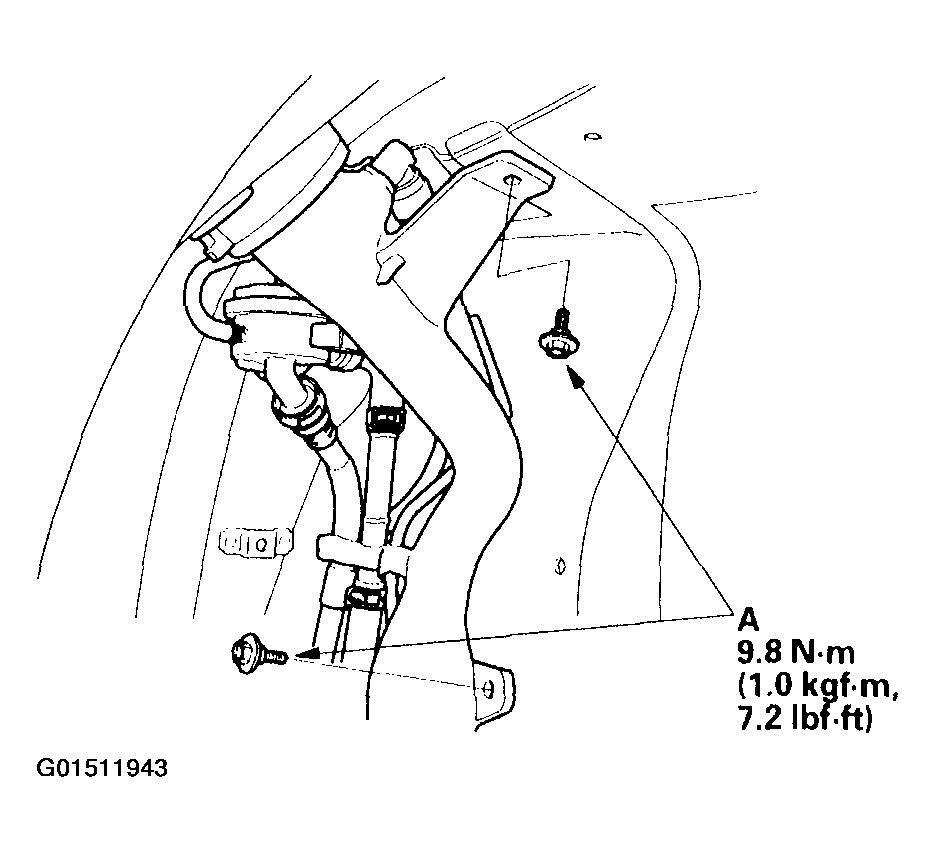

- Remove the bolts (A).

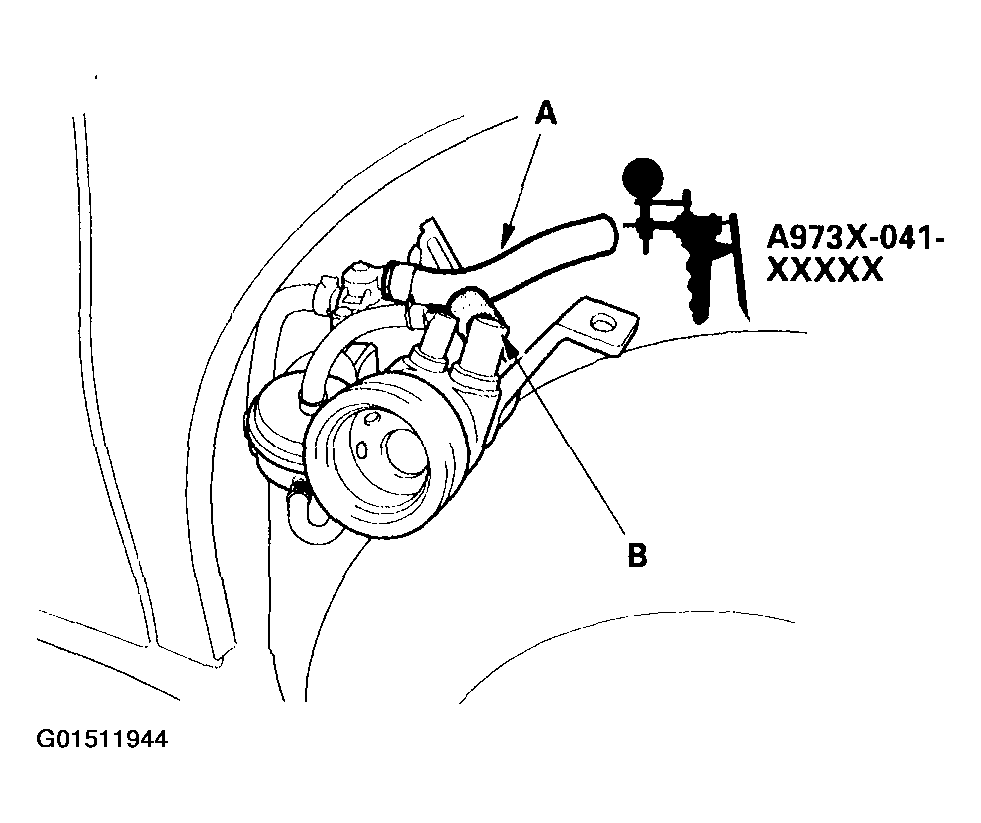

- Disconnect the fuel tank vapor recirculation tube (A), and connect a vacuum pump to the tube.
- Plug the fuel tank vapor recirculation port (B).
- Apply vacuum to the fuel tank vapor recirculation tube.
- If the vacuum holds, replace the fuel tank vapor control valve (see Fuel Tank Vapor Control Valve Replacement ).
- If the vacuum does not hold, the float is OK. Go to step 1 of the valve test (see Valve Test ).
