2001 Honda Odyssey LXFACTORY OEM SERVICE PROCEDURE
Right Power Sliding Door Control Unit Input Test
- Remove right rear side trim panel. See REAR SIDE TRIM PANEL under REMOVAL & INSTALLATION.

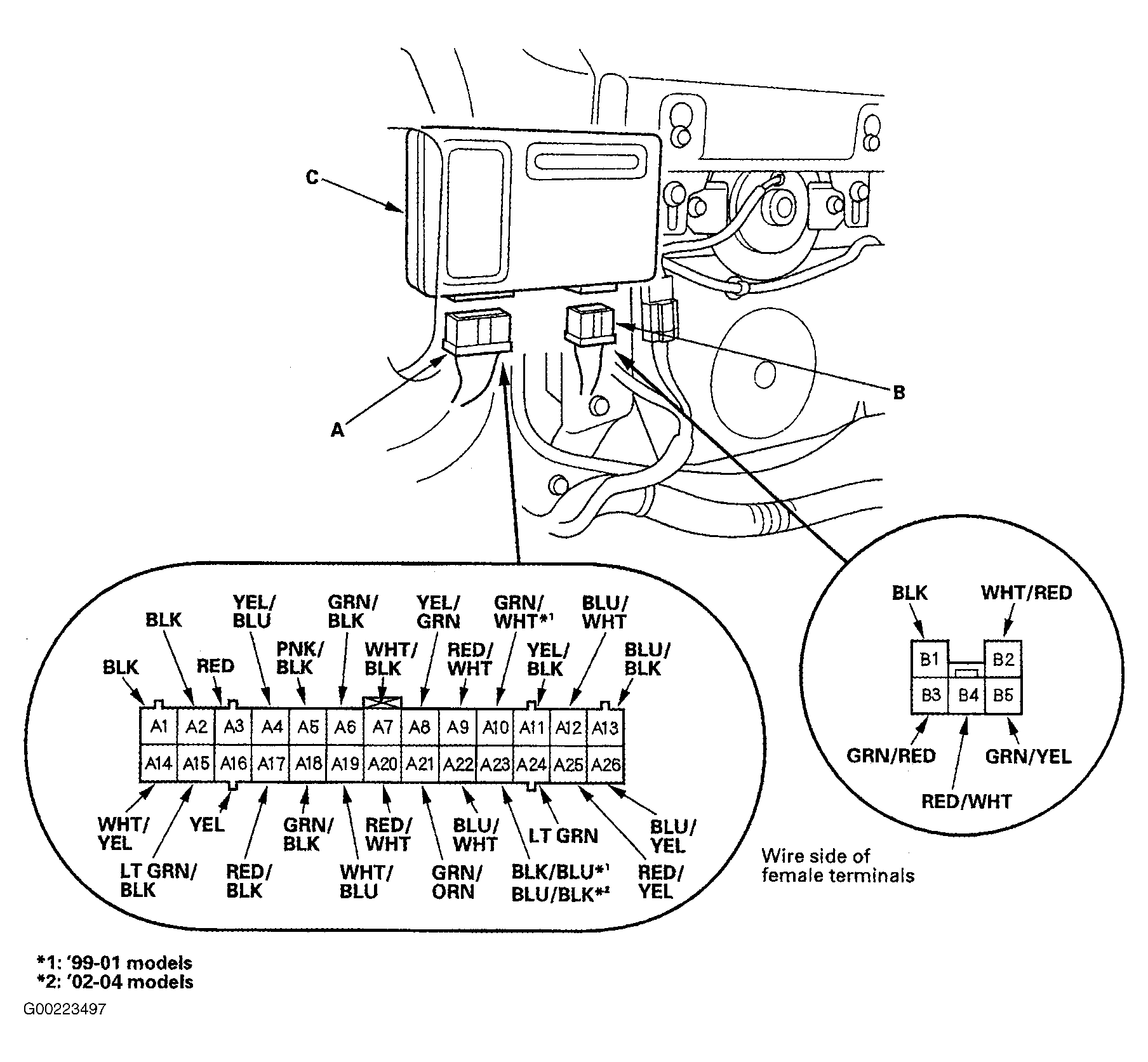

- Disconnect right power sliding door control unit 26-pin harness connector "A" and 5-pin harness connector "B". Inspect all the connectors and socket terminals to be sure the are all making good contact. See Fig 1.

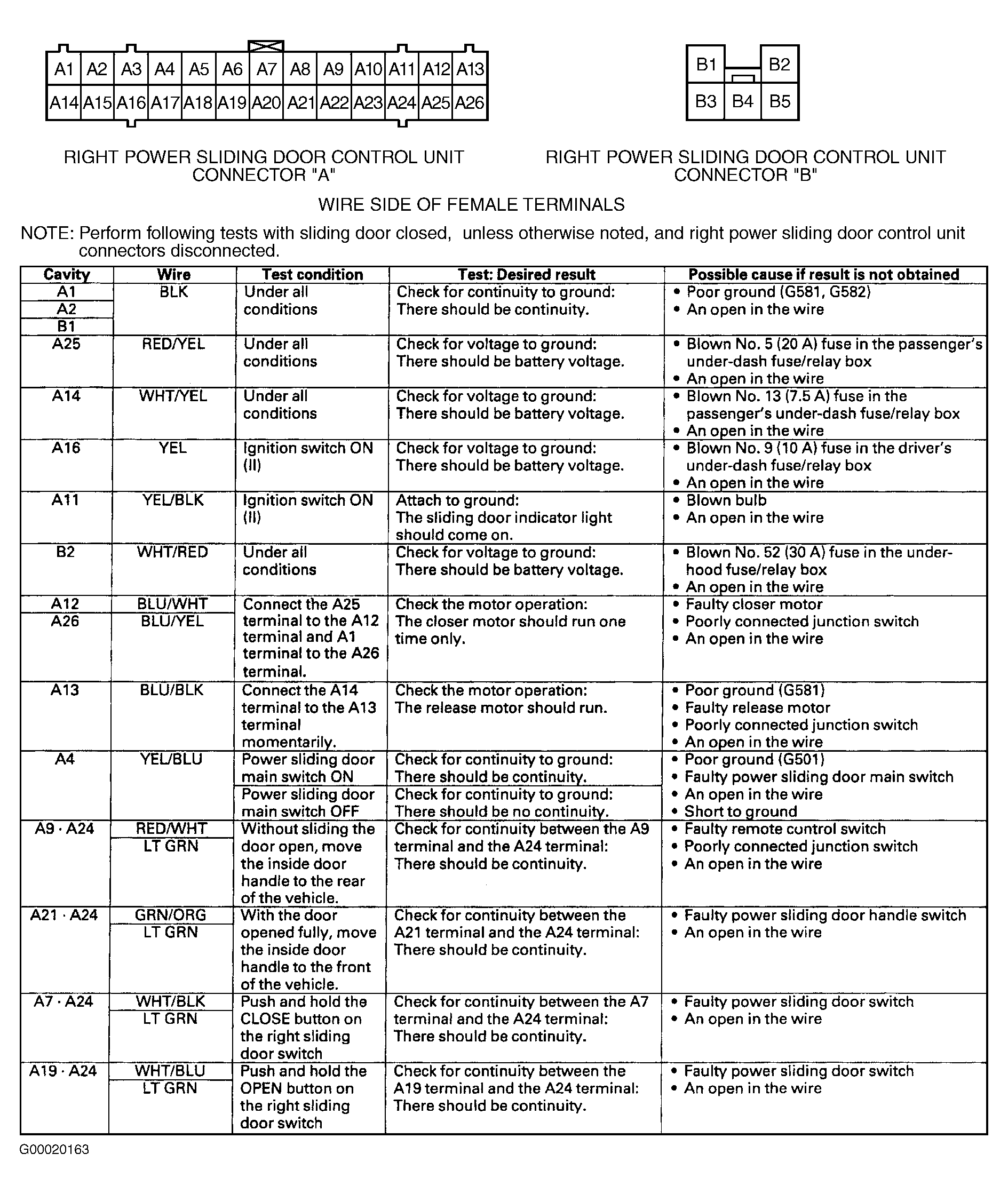

- If problem exists, repair harness connector(s) as necessary and retest system. If problem does not exist, perform right power sliding door control unit input tests. See Fig 2-Fig 4 .
- If any input test is not as specified, repair indicated fault and retest system. See WIRING DIAGRAMS .
