2000 Honda S2000FACTORY OEM SERVICE PROCEDURE
Blower Unit Component Replacement
WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Note these items when overhauling the blower unit:

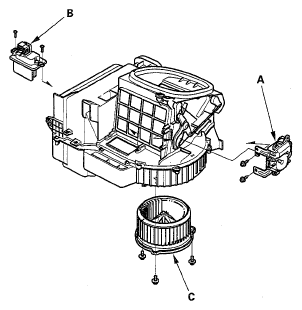

- The recirculation control motor (A), the power transistor (B) and the blower motor (C) can be replaced without removing the blower unit.
- Before reassembly, make sure that the recirculation control doors and linkage move smoothly without binding.
- After reassembly, make sure the recirculation control motor runs smoothly. RECIRCULATION CONTROL MOTOR TEST
- Make sure that there is no air leakage.
