2000 Honda S2000FACTORY OEM SERVICE PROCEDURE

ECM Replacement

  1. Turn the ignition switch OFF.
  2. Disconnect the negative cable from the battery.
  3. Remove the left side kick panel (A) to expose the ECM (B).

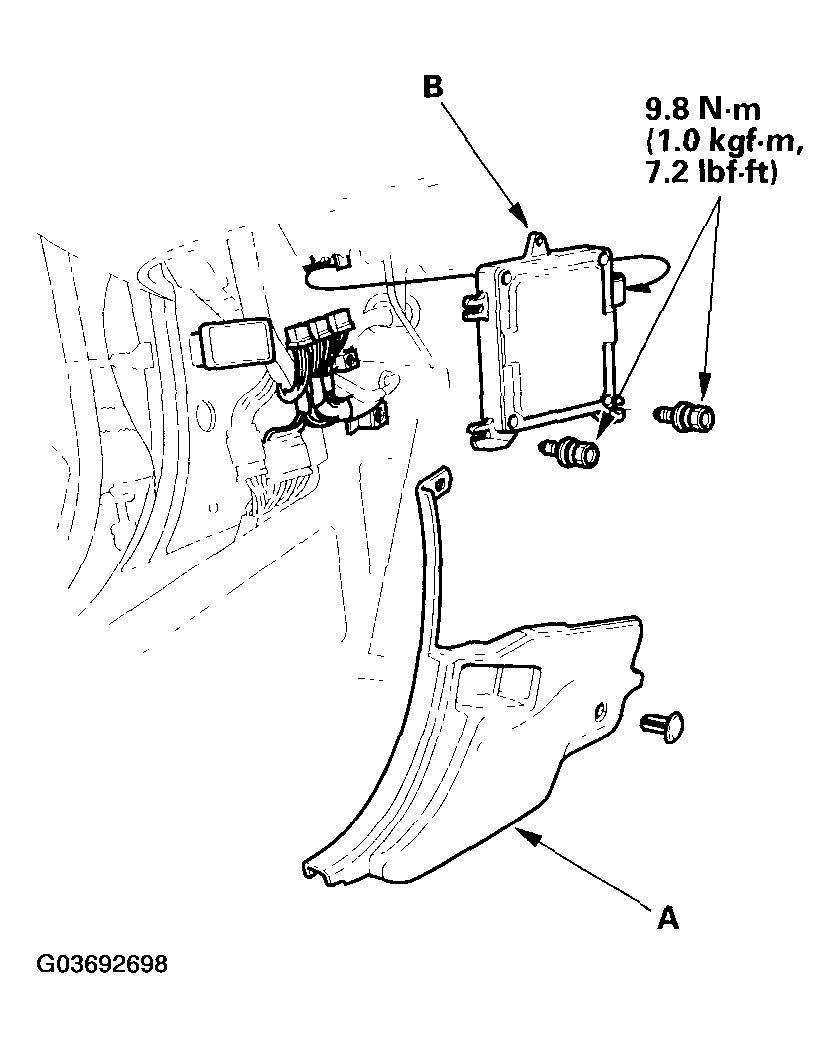

    Fig 1: Removing Left Side Kick Panel To Expose ECM With Torque Specifications
    G03692698Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two bolts from the ECM.
  5. Disconnect the ECM connectors.
  6. Install the ECM in the reverse order of removal.
  7. Connect the HDS to the DLC (A) located under the passenger's side of dashboard (2000-2001 models) or behind the driver's side of the front console (2002-2005 models).

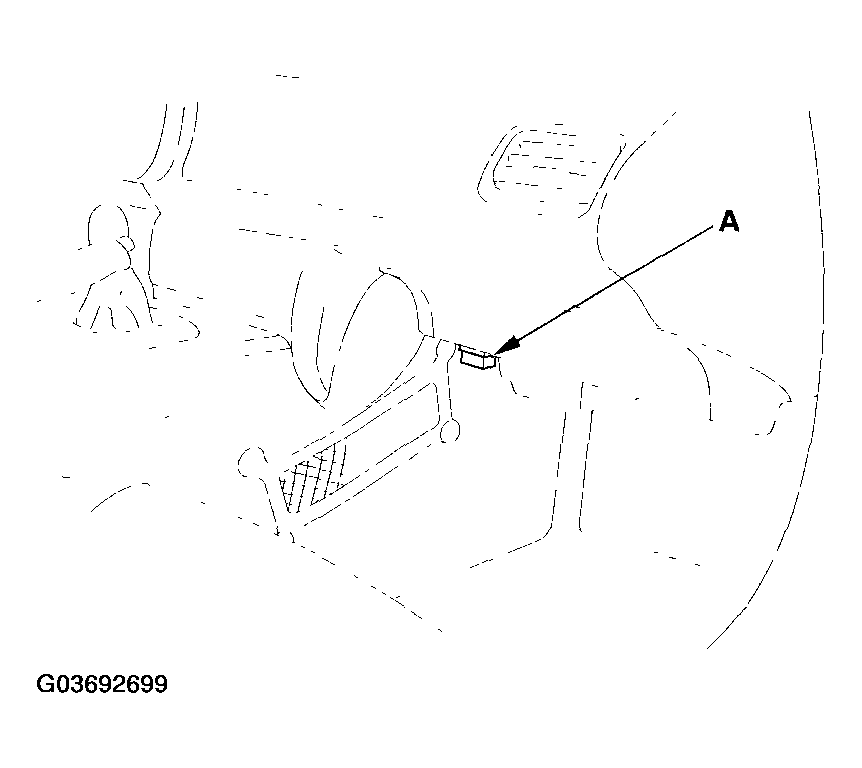

    Fig 2: Connecting HDS To DLC (A) Located Under Passenger'S Side Of Dashboard (2000-2001 Models)
    G03692699Courtesy of AMERICAN HONDA MOTOR CO., INC.
