Idle Speed Inspection
- Leave the IAC valve connected.
- Before checking the idle speed, check these items:
- The MIL has not been reported on.
- Ignition timing
- Spark plugs
- Air cleaner
- PCV system
- On Canadian models, pull the parking brake lever up. Start the engine, then check that the headlights are off.
- Disconnect the EVAP canister purge valve 2P connector.

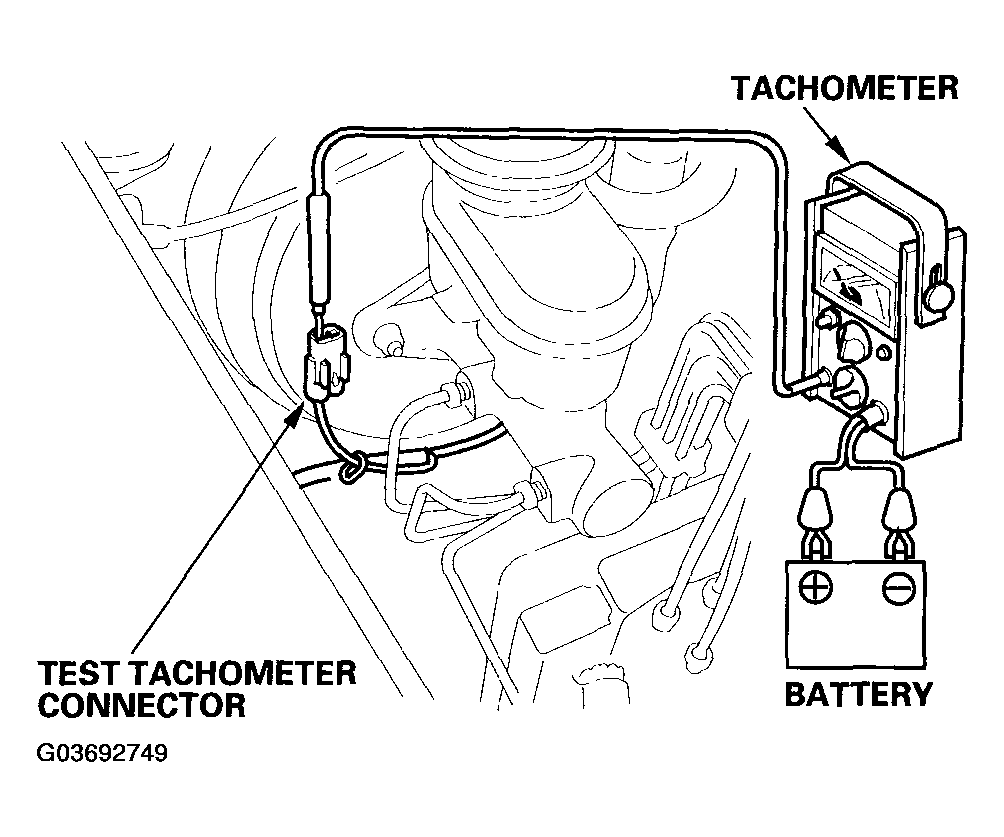

- Connect a tachometer.
- Start the engine. Hold the engine speed at 3,000 RPM without load (in neutral) until the radiator fan comes on, then let it idle.
- Check the idle speed at idle without load conditions: headlights, blower fan, radiator fan, and air conditioner off.
Idle speed should be: 800+/-50 RPM
- Let the engine idle for 1 minute with high electric load (A/C switch ON, temperature set to Max cool, blower fan on High, and head light on high beam).
Idle speed should be: 900+/-50 RPM
NOTE: If the idle speed is not within specification, do the symptom troubleshooting. - Reconnect the EVAP canister purge valve 2P connector.
