Spark Plug Inspection

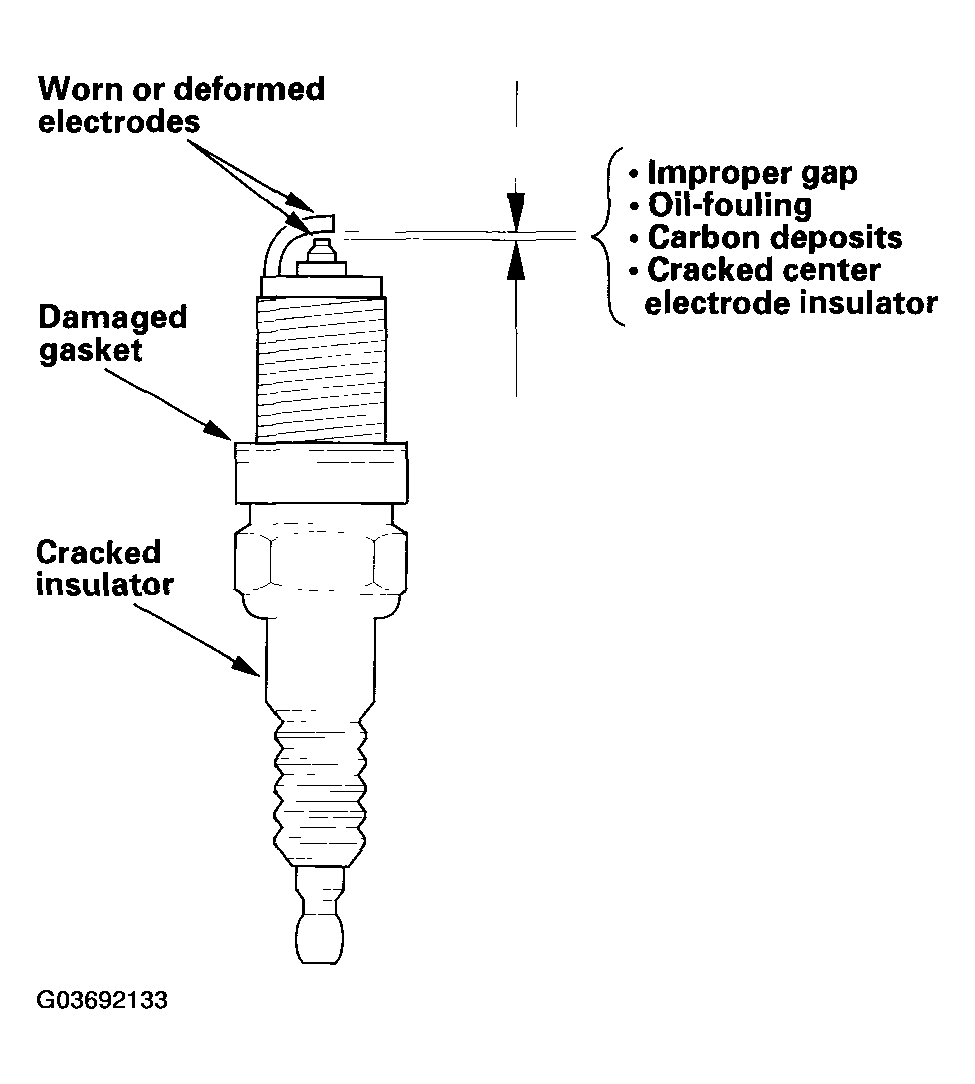

- Inspect the electrodes and ceramic insulator.
- Burned or worn electrodes may be caused by:
- Advanced ignition timing
- Loose spark plug
- Plug heat range too hot
- Insufficient cooling
- Fouled plug may be caused by:
- Retarded ignition timing
- Oil in combustion chamber
- Incorrect spark plug gap
- Plug heat range too cold
- Excessive idling/low speed running
- Clogged air cleaner element
- Deteriorated ignition coils
- Burned or worn electrodes may be caused by:
- If the spark plug electrode is dirty or contaminated, clean the electrode with a plug cleaner.NOTE:
- Do not use a wire brush or scrape the iridium electrode since this will damage the electrode.
- Use a chemical cleaner such as Carb Spray to clean contamination on the electrode.
- When using a sand blaster spark plug cleaner, do not clean for more than 20 seconds to avoid damaging the electrode.

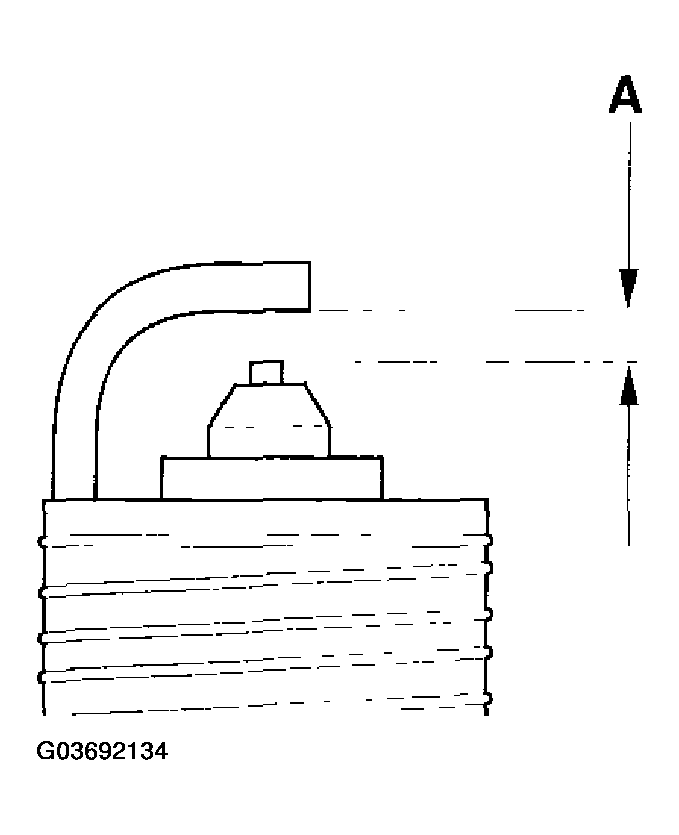

- Do not adjust the gap of platinum tip plugs (A); replace the spark plug if the gap is out of specification.
Electrode Gap:
Standard (New): 1.0-1.1 mm (0.039-0.043 in.)

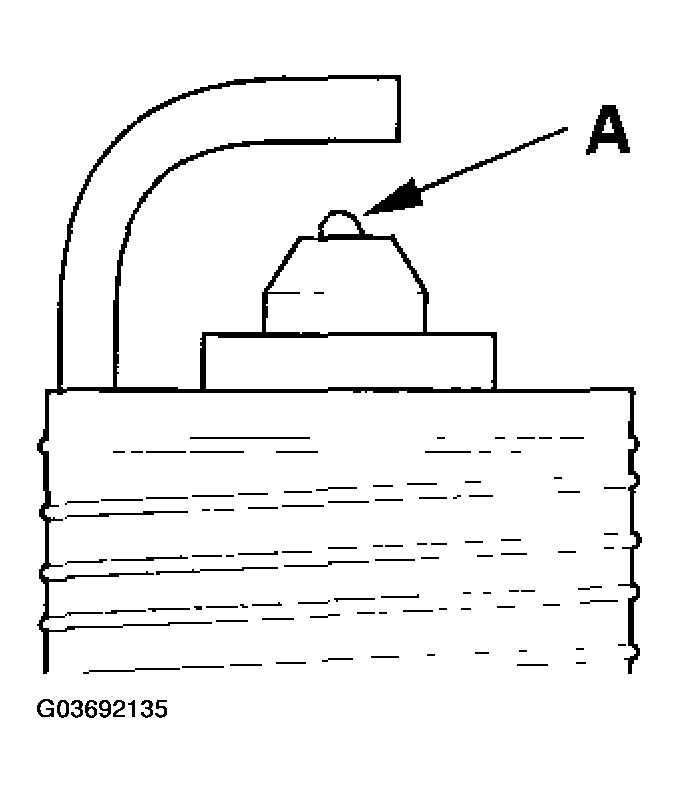

- Replace the plug at the specified interval, or if the center electrode is rounded (A). Use only the spark plugs listed.
Spark Plugs:
NGK: PFR7G-11S
DENSO: PK22PR-L11S
- Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Then torque them to 25 N.m (2.5 kgf.m, 18 lbf.ft).
