Ignition Switch/Steering Lock: Test
SRS components are located in this area. Review the SRS component locations, (see COMPONENT LOCATION INDEX ) and PRECAUTIONS AND PROCEDURES ) before performing repairs or service.
- Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
- Disconnect the battery negative cable.

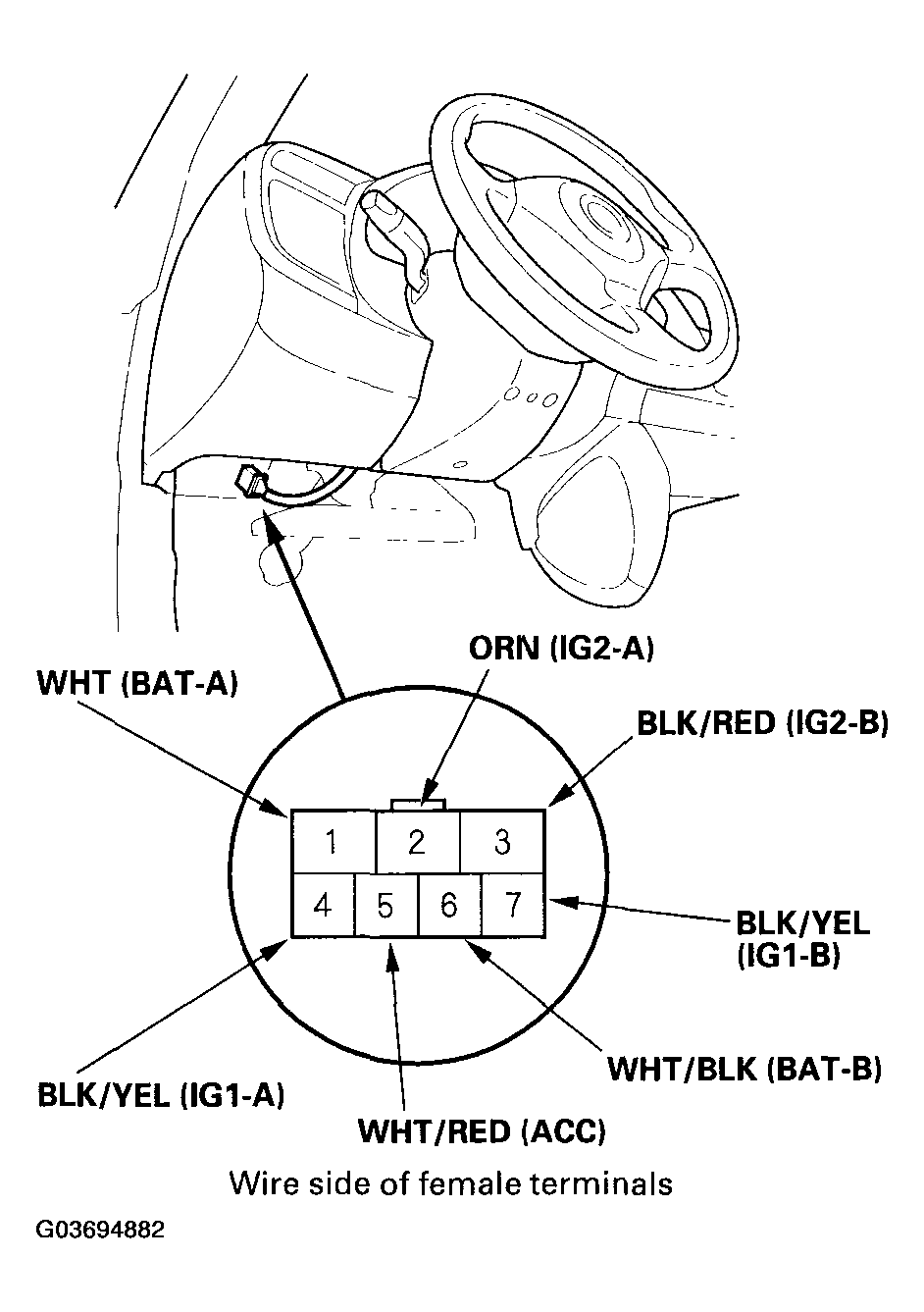

- Disconnect the 7P connector from the under-dash fuse/relay box.

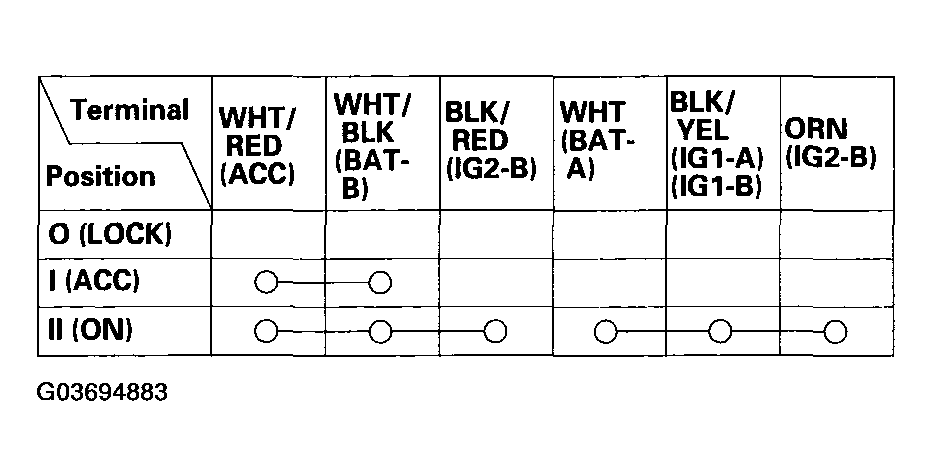

- Check for continuity between the terminals in each switch position according to the table below.
- If the continuity checks do not agree with the table, replace the electrical switch.
