2000 Honda S2000FACTORY OEM SERVICE PROCEDURE
Motor Test
- Remove the driver's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).

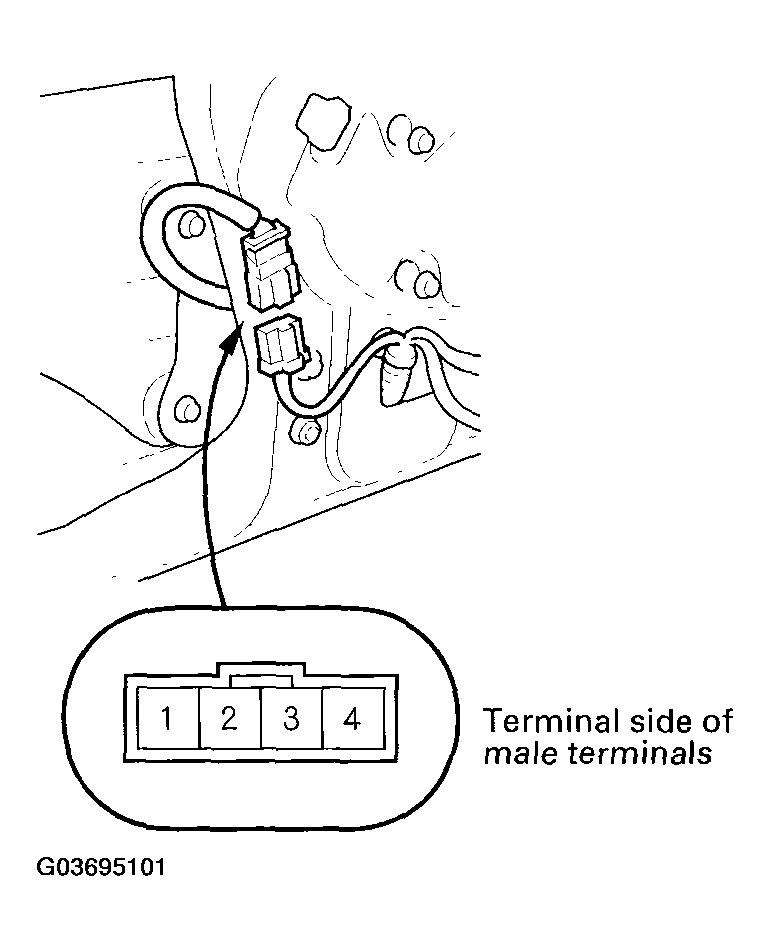

- Disconnect the 4P connector from the driver's window motor.

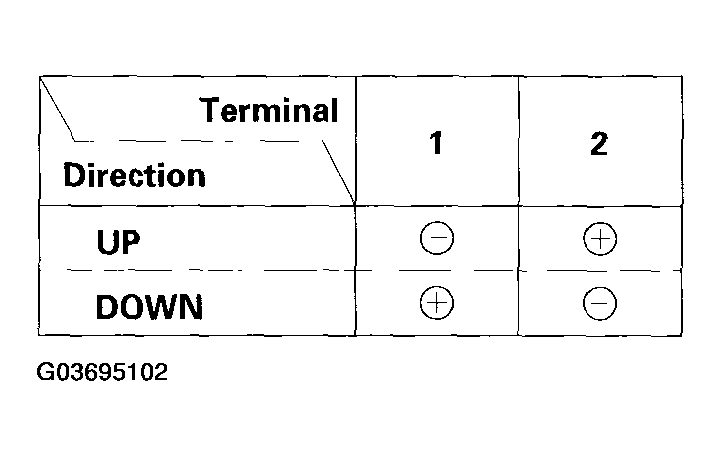

- Test the motor in each direction by connecting battery power and ground according to the table below. When the motor stops running, disconnect one lead immediately.
- If the motor does not run or fails to run smoothly, replace it.
Detect Circuit Test
- Connect the test leads of an analog ohmmeter to the No. 3 and No. 4 terminals.
- Run the motor by connecting power and ground to the No. 1 and No. 2 terminals. The ohmmeter needle should move back and forth alternately. If it does not, replace the motor.
