2000 Honda Prelude Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Bench Testing: Brushes

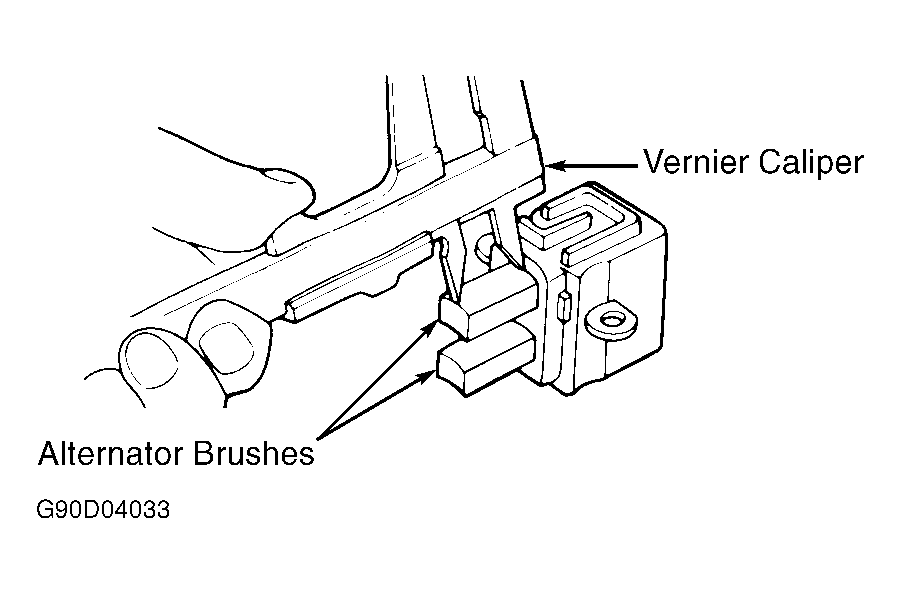

Remove brush holder from generator. Using vernier caliper, measure brush length. See Fig 1 and Fig 2 . If brush length is not as specified, replace brushes. See BRUSH LENGTH SPECIFICATIONS table.
BRUSH LENGTH SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Civic | ||
| Standard | .75 (19.0) | |
| Limit (Minimum) | .20 (5.0) | |
| Except Civic | ||
| Standard | .41 (10.5) | |
| Limit (Minimum) | .06 (1.5) | |
