Shift Lock System Circuit Troubleshooting: Notes
- Press the brake pedal.
Are the brake lights ON?
YES - Go to step 2.
NO - Repair faulty brake light circuit.
- Turn the ignition switch ON (II), and shift to P position.
- Press the brake pedal, and release the accelerator pedal.

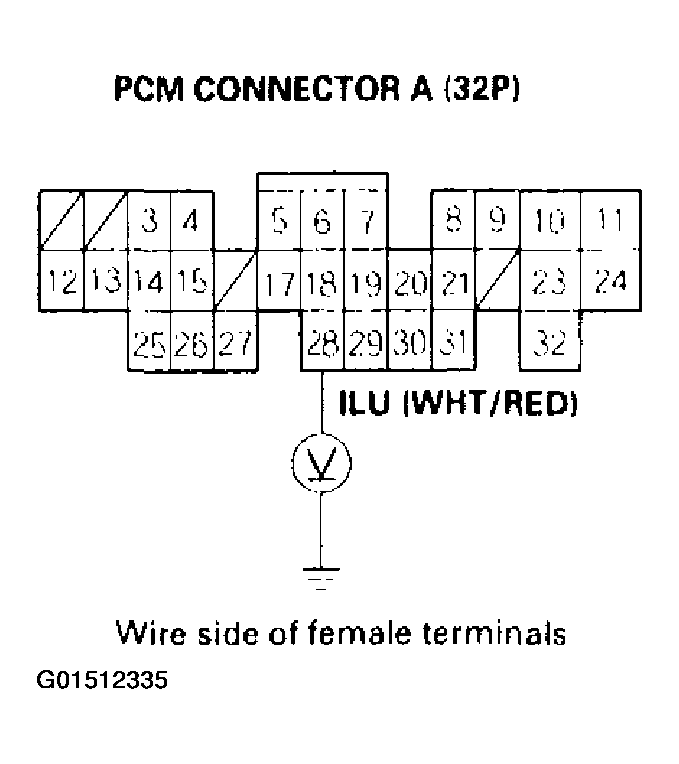

- Measure ILU voltage between these terminals and body ground:
- 1999-2000 models: Between A28 terminal and ground.
- 2001 model: Between E15 terminal and ground.
