2000 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE
Park Pin Switch Test
SRS components are located in this area. Review the SRS component locations , and the precautions and procedures in appropriate AIR BAG article under RESTRAINTS before performing repairs or service.
- Remove the steering column covers (see Steering Column Removal & Installation ).

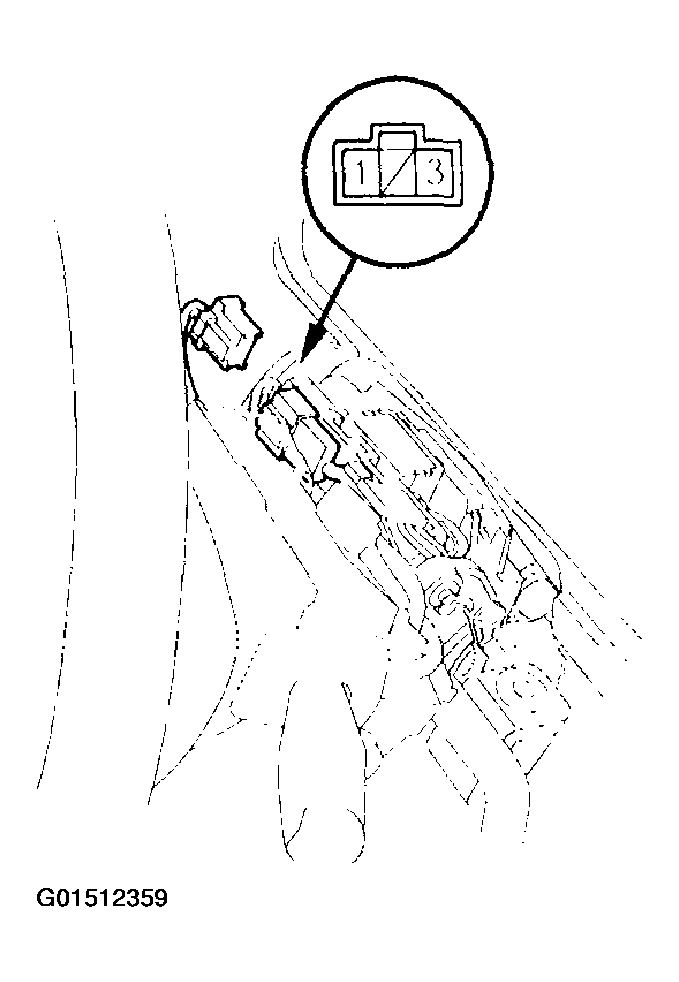

- Disconnect the park pin switch connector.
- Shift the shift lever into the P position, then check for continuity between the No. 1 and No. 3 terminals. There should be no continuity.
- Shift the shift lever out of the P position, and check for continuity between the terminals in step 3. There should be continuity.
- If the park pin switch is faulty, replace the control bracket assembly. (The park pin switch is not available separately.)
