2000 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE

Fuel Line/Quick-Connect Fitting Installation: Installation

  1. Check the contact area (A) of the line (B) for dirt and damage, and clean if necessary.
    Fig 1: Checking Contact Area For Dirt & Damage
    G01511746Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
    • replacing the fuel pump.
    • replacing the fuel filter.
    • replacing the fuel feed line.
    • replacing the fuel return line.
    • removing the retainer from the line.
    Fig 2: Inserting New Retainer Into Connector
    G01511747Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Before connecting a new fuel tube/quick-connect fitting assembly (A), remove the old retainer from the mating line.

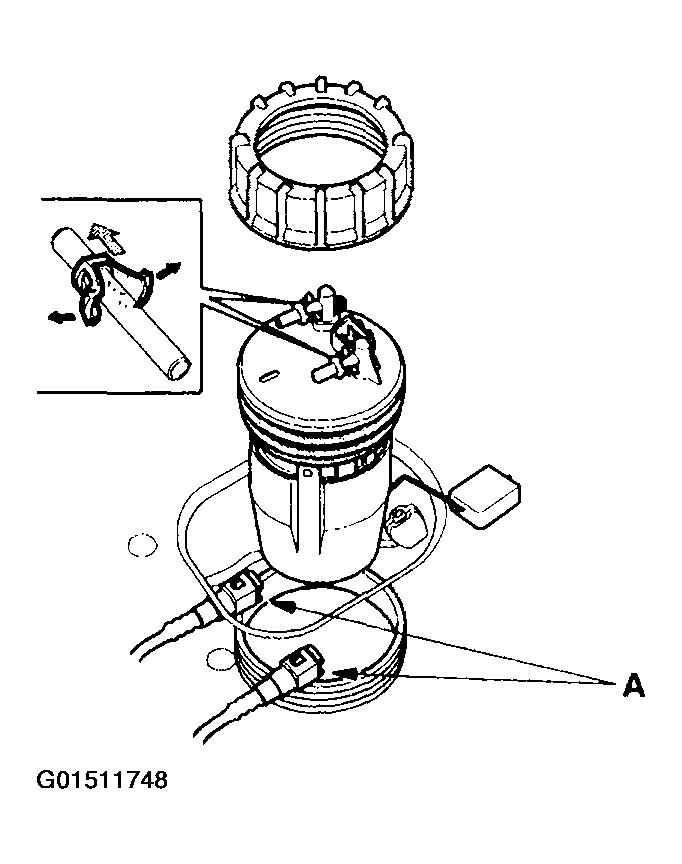

    Fig 3: Removing Old Retainer From Mating Line
    G01511748Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Align the quick-connect fittings with the line (A), and align the retainer (B) locking pawls with the connector (C) grooves. Then press the quick-connect fittings onto the line until both retainer pawls lock with a clicking sound.
    NOTE: If it is hard to connect, put a small amount of new engine oil on the line end.
