2000 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE
'03-04 models
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

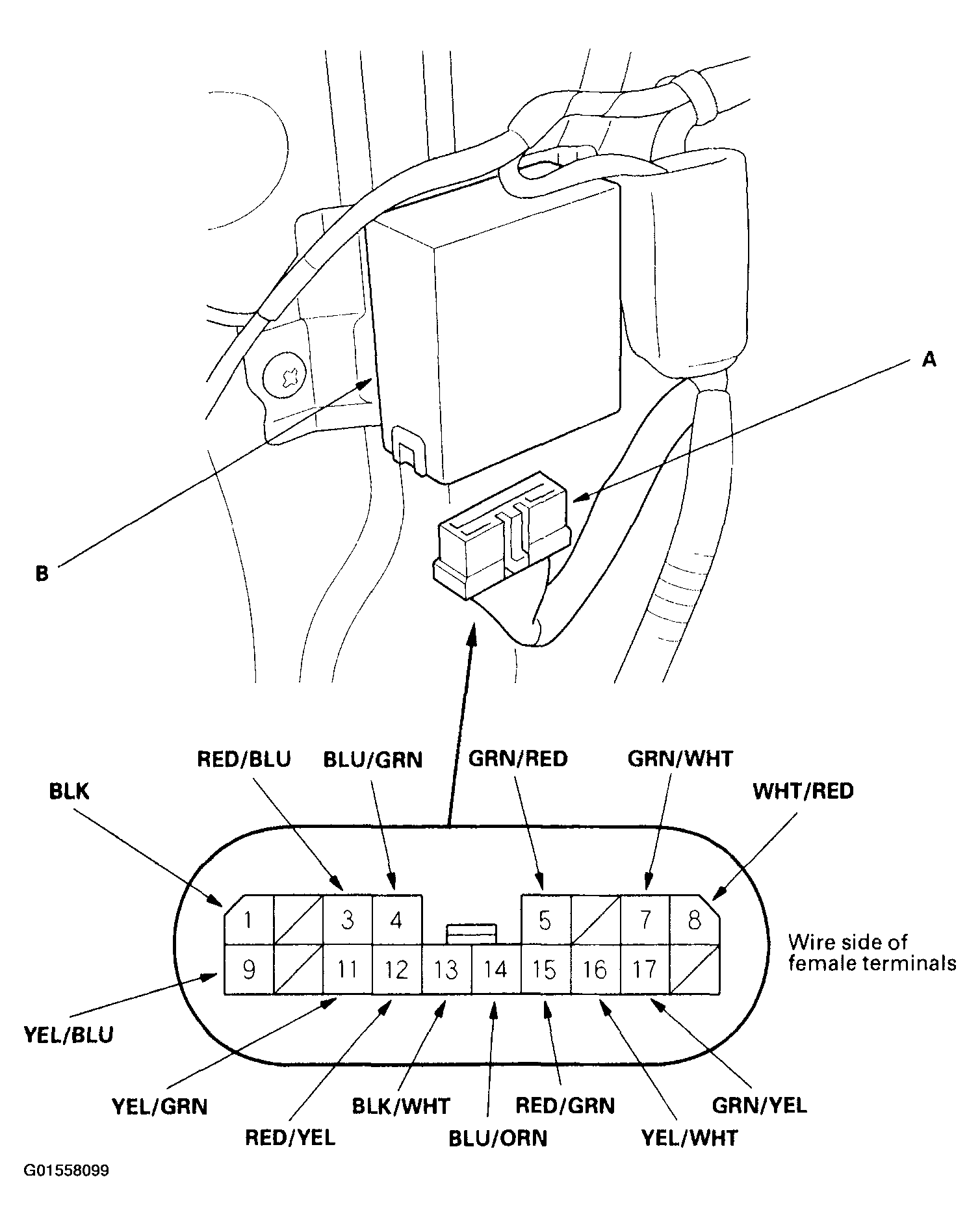

- Disconnect the 18P connector (A) from the power window control unit (B).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

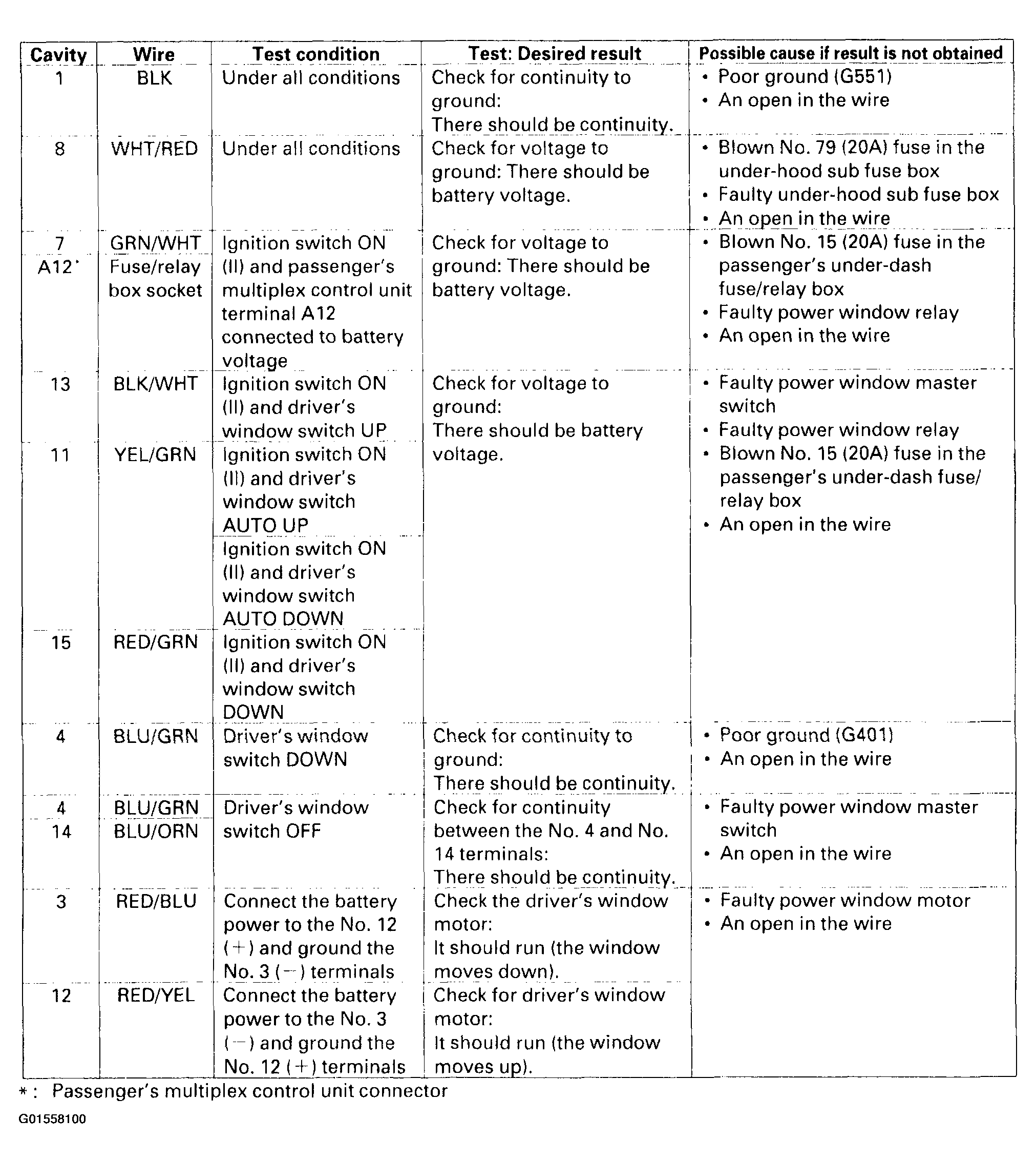

- With the control unit connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

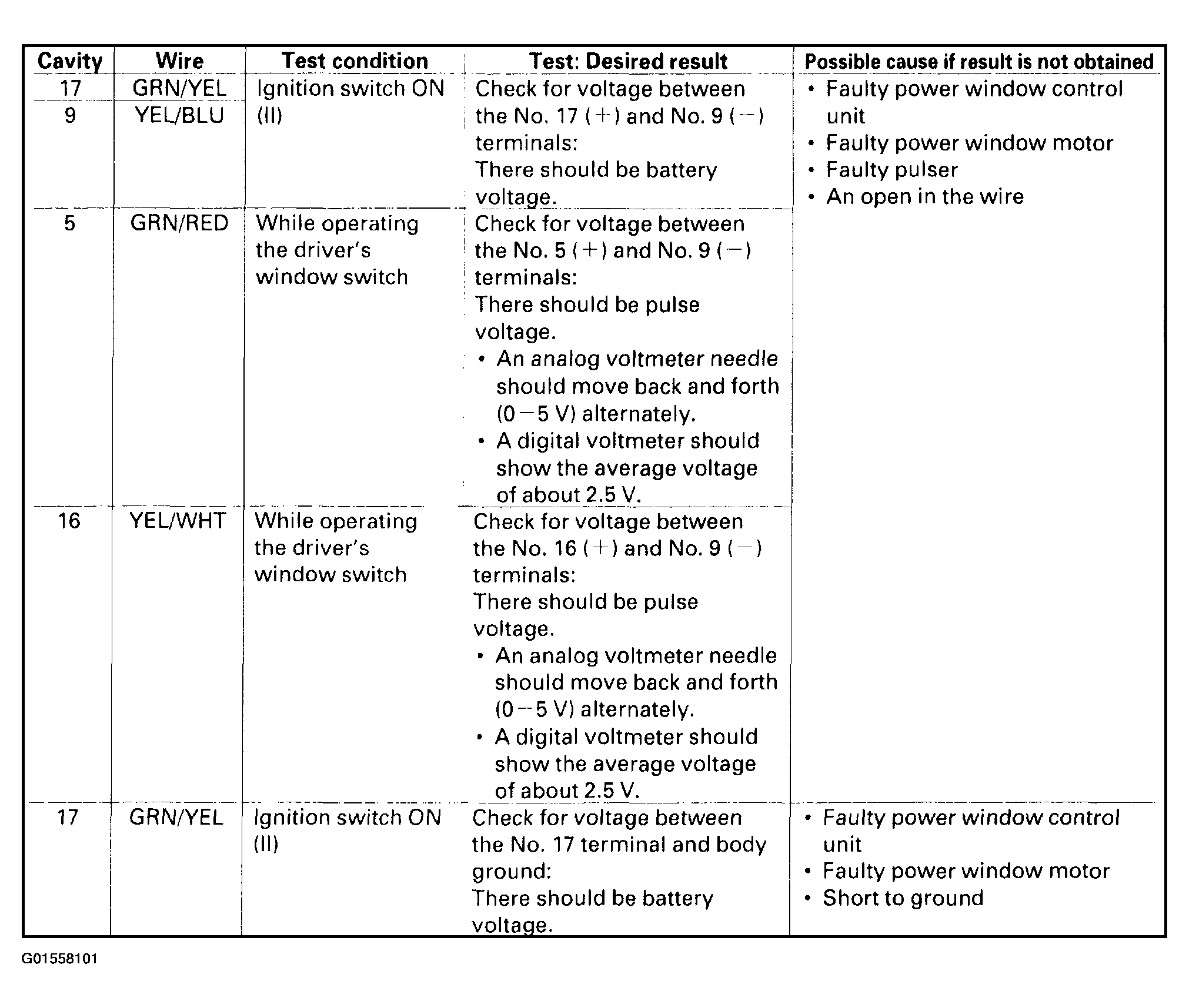

- Reconnect the 18P connector to the power window control unit, and reconnect the passenger's multiplex control unit. Then make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
