Pre-Alignment Checks
For proper inspection and adjustment of the wheel alignment, do these checks:
- Release the parking brake to avoid an incorrect measurement.
- Make sure the suspension is not modified.
- Check the tire size and cold tire pressures.
Tire size:
- Front/Rear: P165/65R14 78S
Tire pressure:
- Front: 260 kPa (2.6 kgf/cm 2 , 38 psi), cold
- Rear: 240 kPa (2.4 kgf/cm 2 , 35 psi), cold
- Check the runout of the wheels and tires.

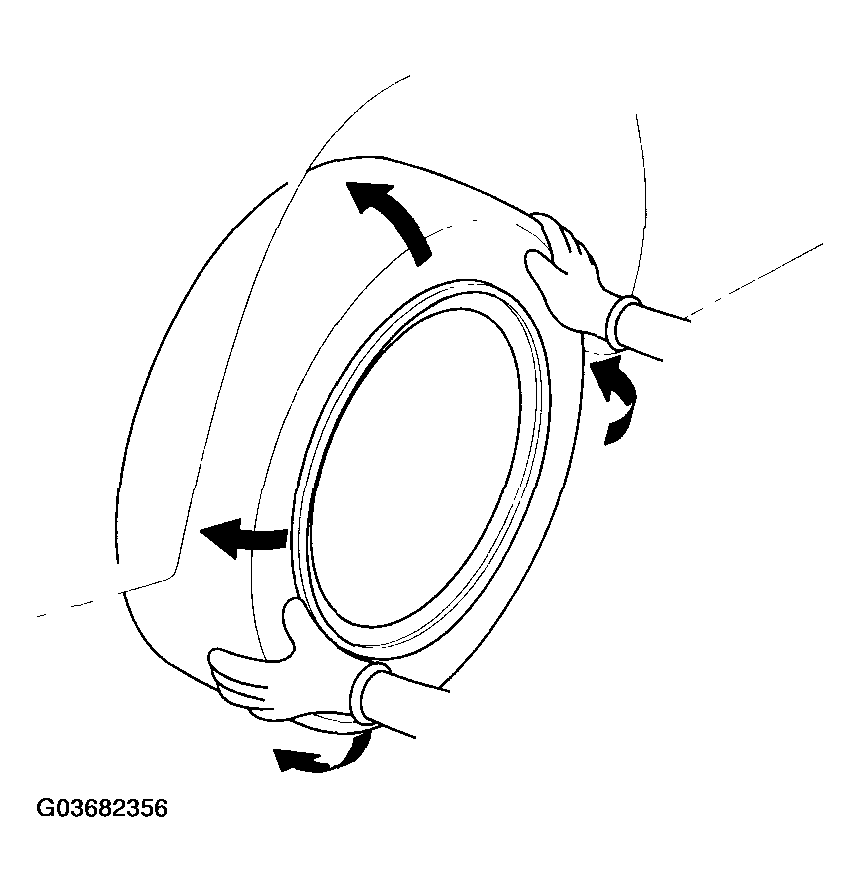

- Check the suspension ball joints. (Hold a wheel with your hands, and move it up and down and right and left to check for wobbling.)
- Bounce the vehicle several times to stabilize the suspension.
