Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow the equipment manufacturer's instructions.

Center the steering wheel spokes and install a steering wheel holder tool.
Check the toe. If it is not within the specification, go to step 3.
Front toe-in: 0+/-2mm (0+/-1/16 in.)
Loosen the inner locknut (A) while holding the tie-rod arm (B), and loosen the outer locknut (C) while holding the tie-rod end (D).

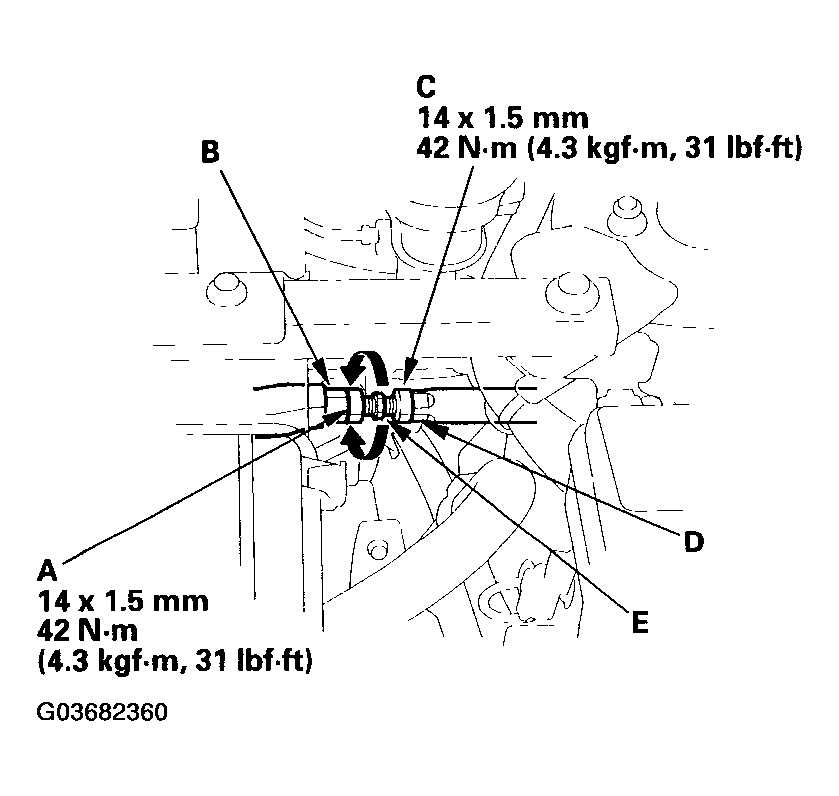

Fig 1: Loosening Inner Locknut And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the tie-rod adjuster bolt (E) until the toe is correct.
After adjusting, tighten the locknuts while holding the tie-rod arm or tie-rod end. Make sure the arrow (A) on the tie-rod arm (B) and the aligning mark (C) on the tie-rod end (D) are in line, viewing from the wheelhouse side along the axial direction of the tie-rod, on both right and left side of the vehicle. Make sure the toe setting does not change.

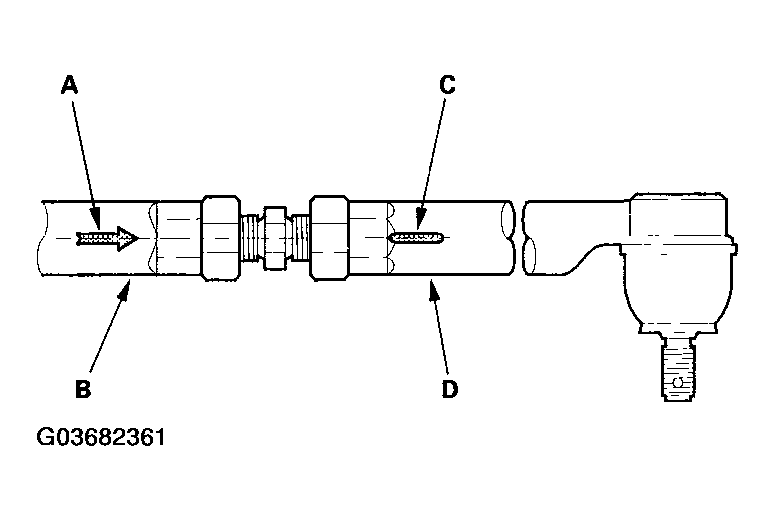

Fig 2: Identifying Aligning Mark On Tie-Rod End
Courtesy of AMERICAN HONDA MOTOR CO., INC.
