Secondary HO2S Replacement
Special Tools Required
02 sensor socket wrench. Snap-on YA8875, SP Tools 93750, or equivalent, commercially available

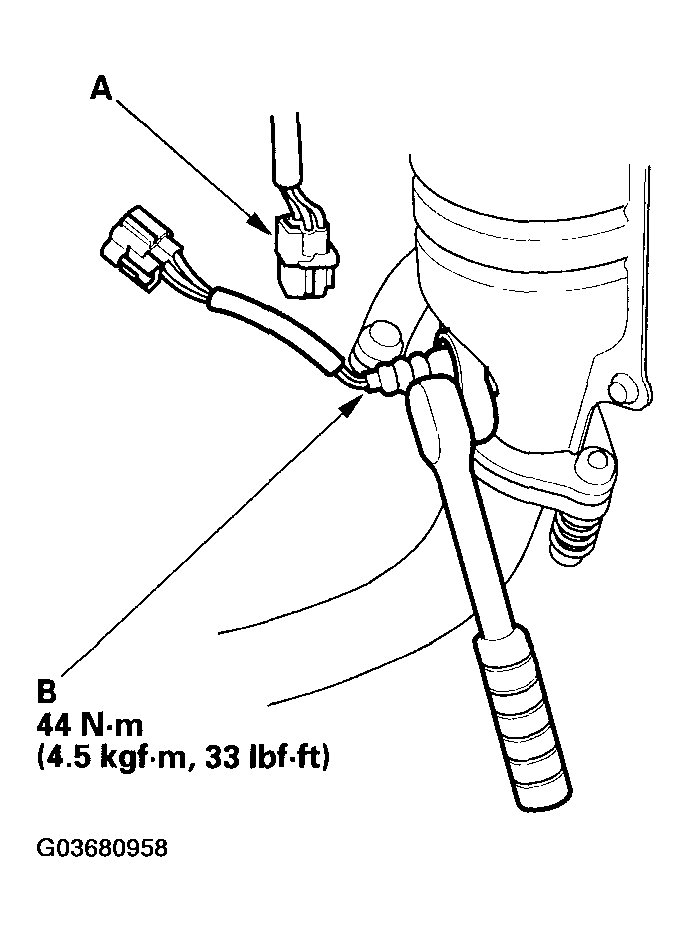

- Disconnect the secondary HO2S 4P connector (A), and remove the secondary HO2S (B).
- Install the secondary HO2S in the reverse order of removal.
