Engine Oil Replacement
- Warm up the engine.

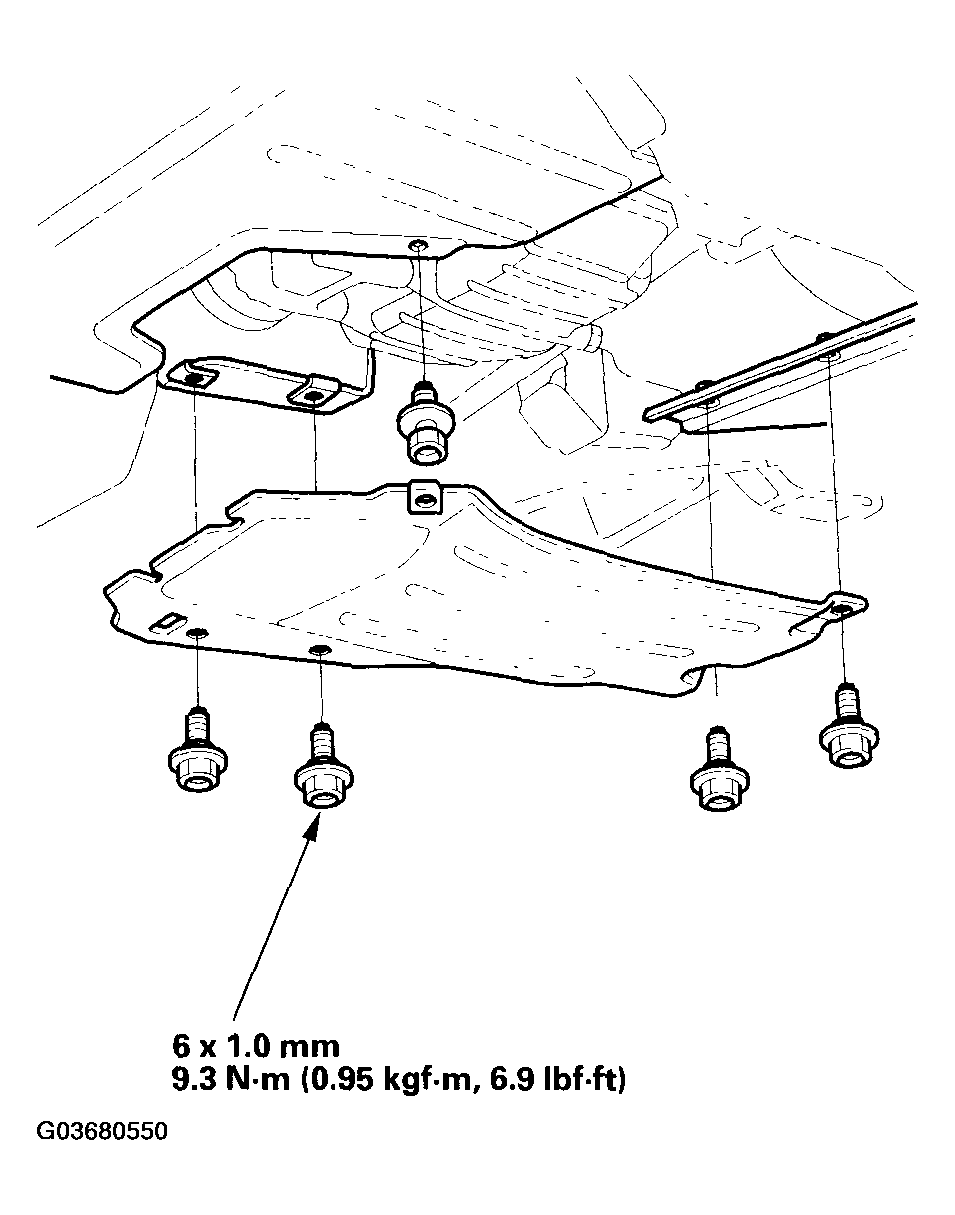

- Remove the right rear splash shield.

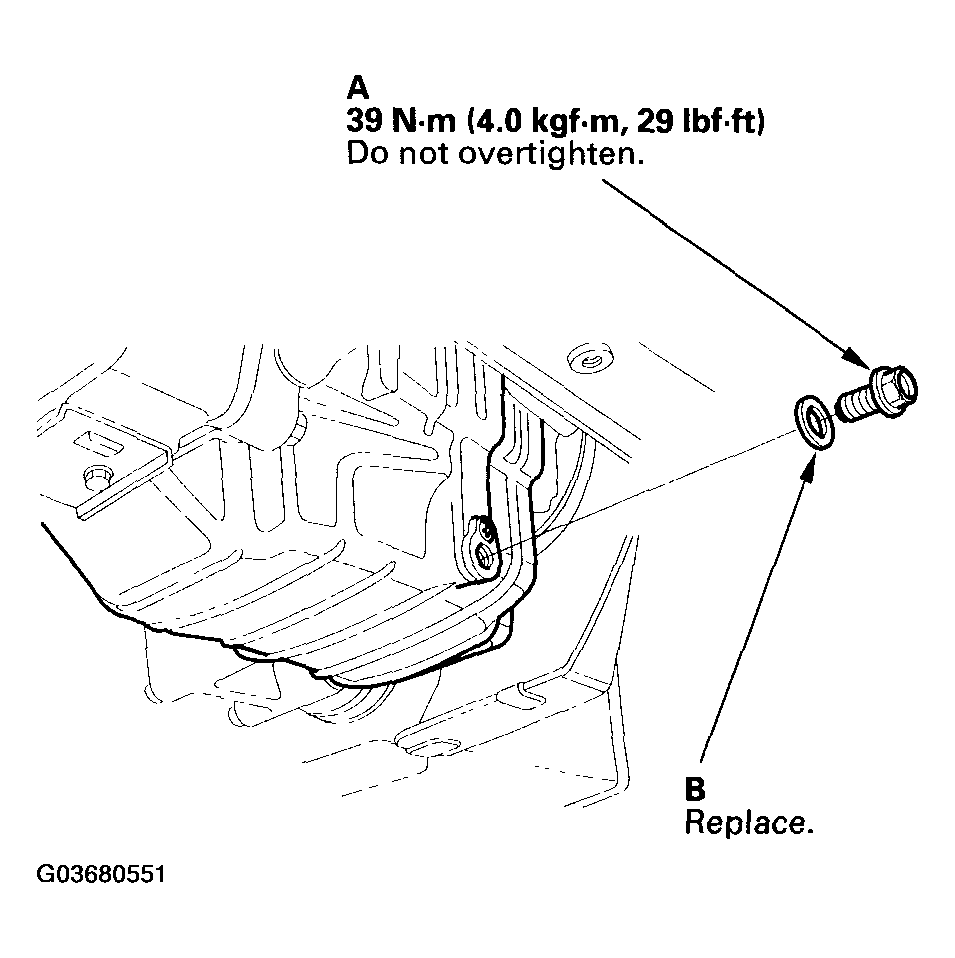

- Remove the drain bolt (A), and drain the engine oil.
- Reinstall the drain bolt with a new washer (B).
- Refill with the recommended oil
.
CapacityÂ
At Oil Change:Â
2.3 L (2.4 US qt)Â
At Oil Change including Filter:Â
2.5 L (2.6 US qt)Â
After Engine Overhaul:Â
3.0 L (3.2 US qt)Â
- Run the engine for more than 3 minutes, then check for oil leakage.
