Starter Performance Test
- Disconnect the wire from the S terminal.
- Make the connections as shown using as heavy a wire as possible (preferably equivalent to the wire used for the vehicle). To avoid damaging the starter, never leave the battery connected for more than 10 seconds.

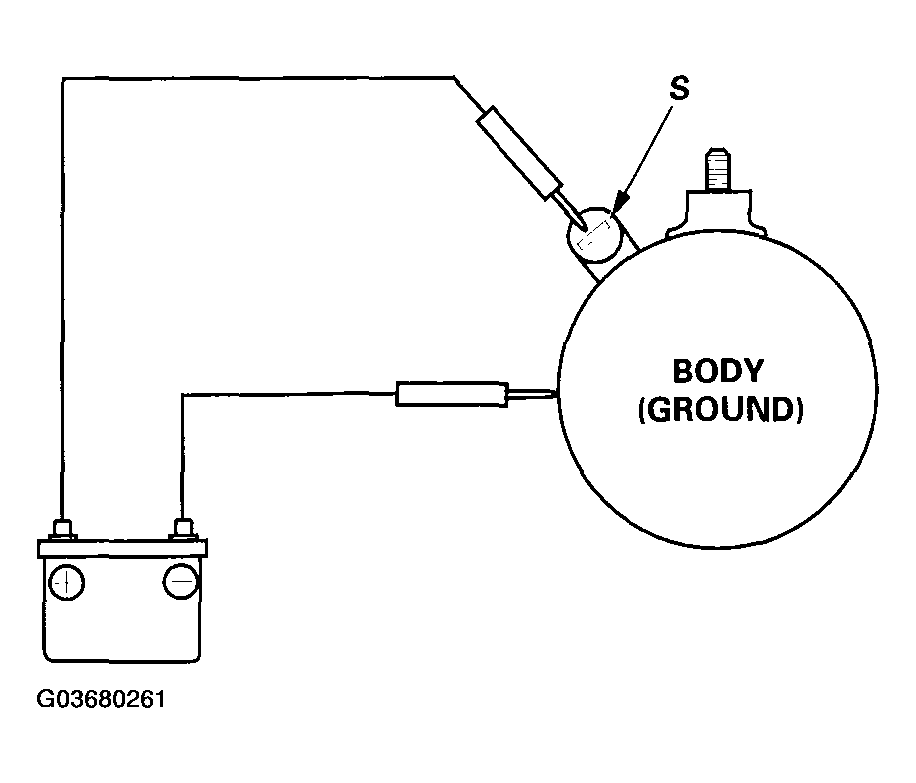

- Connect the battery as shown. If the starter pinion moves out, it is working properly.

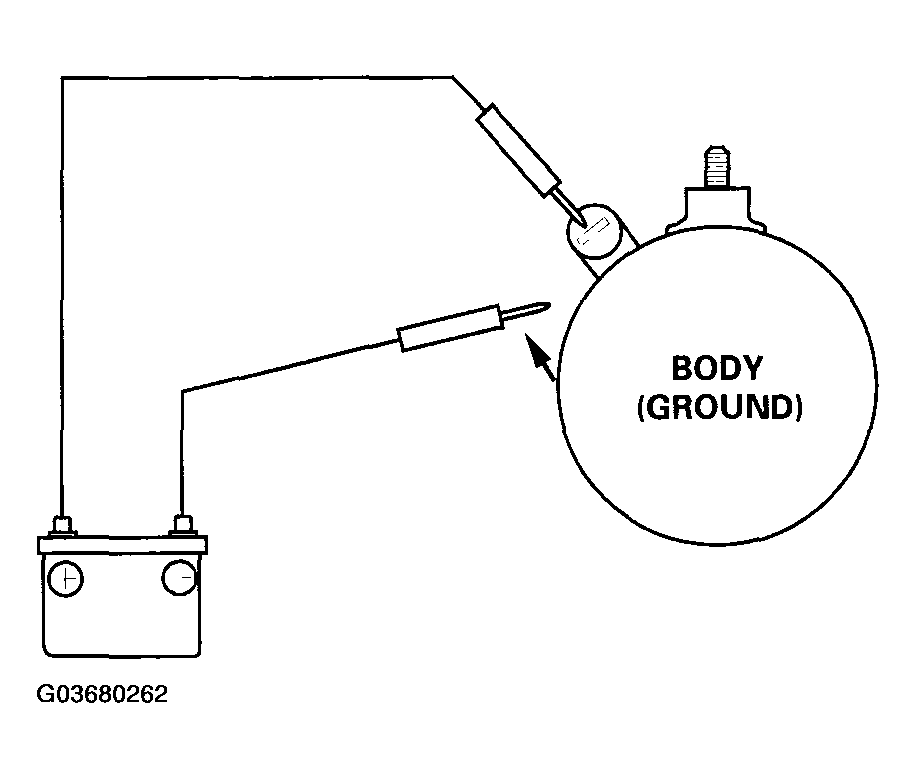

- Disconnect the negative battery terminal from the starter as shown. If the pinion retracts immediately, it is working properly.
- Clamp the starter firmly in a vise.

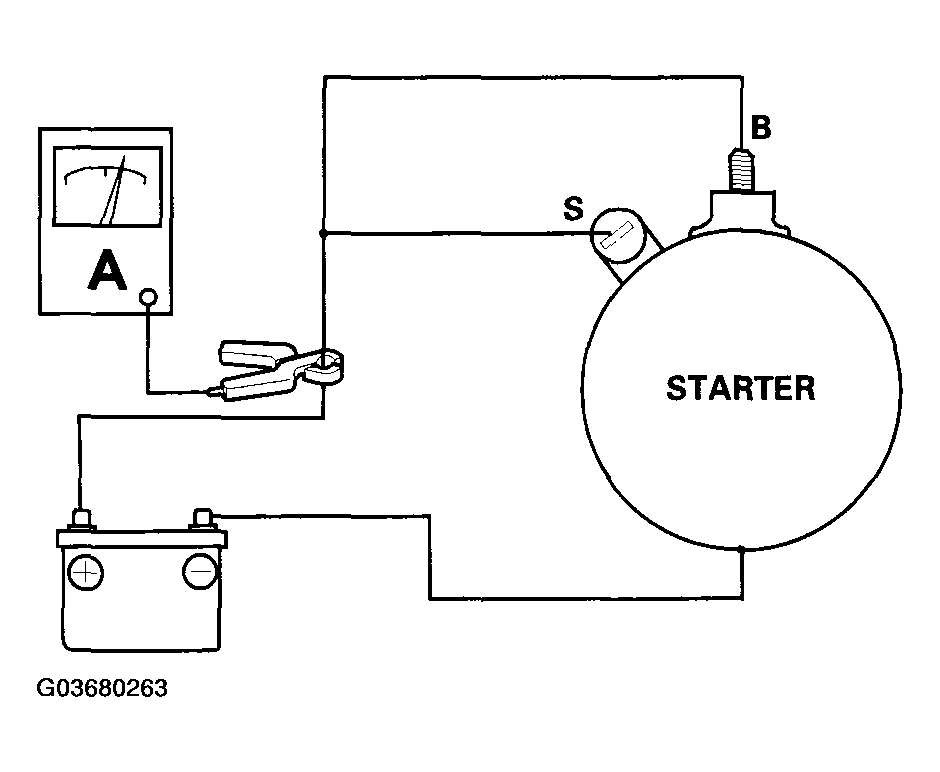

- Connect the starter to the battery as shown, and check that the motor turns and keeps rotating.
- If the electric current and motor speed meet the specifications when the battery voltage is at 11.5 V, the starter is working properly.
Specifications
Electric Current: 80 A or less
Motor Speed: 2,600 RPM or more
