2000 Honda InsightFACTORY OEM SERVICE PROCEDURE

Passenger's Window Switch Test/ Replacement

  1. Remove the passenger's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector (A) from the passenger's power window switch (B).

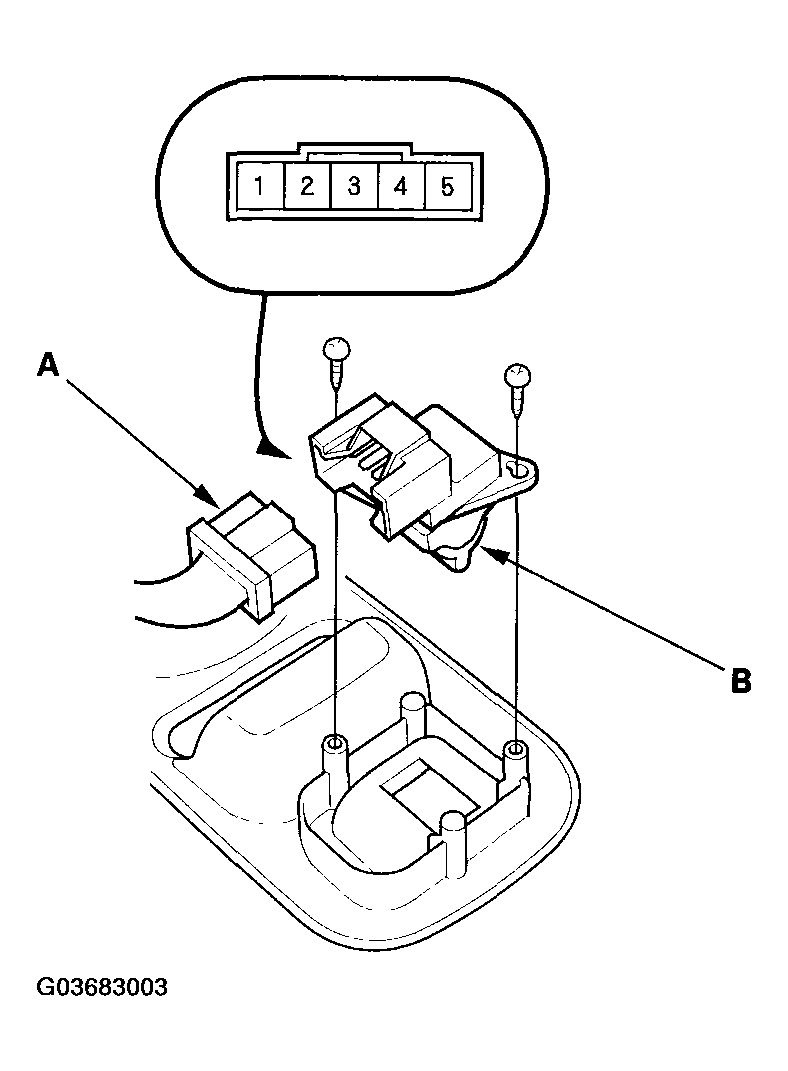

    Fig 1: Disconnecting 5P Connector From Passenger's Power Window Switch
    G03683003Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

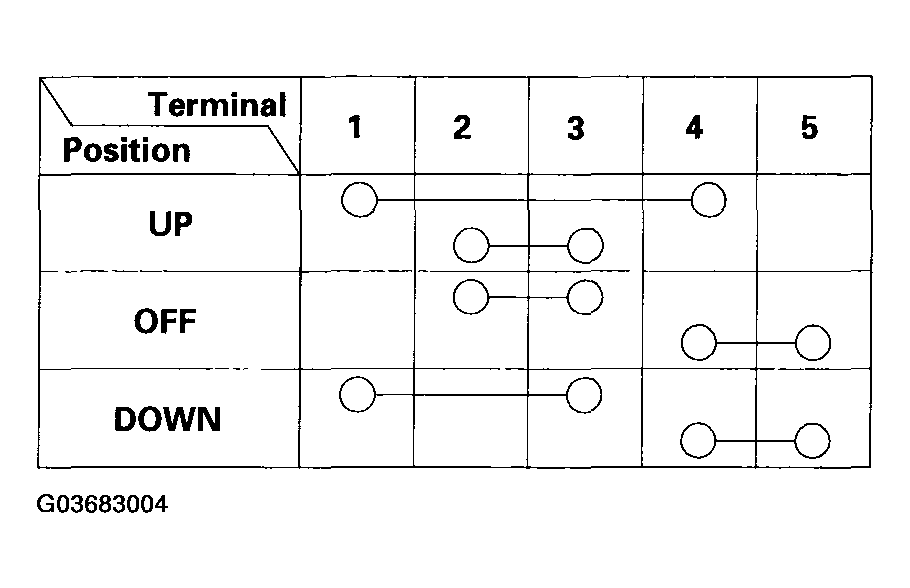

    Fig 2: Power Window Switch Terminals Continuity Checking Reference Table
    G03683004Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, remove the two screws and replace the switch.
