2000 Honda InsightFACTORY OEM SERVICE PROCEDURE
Recirculation Control Motor Replacement
- Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

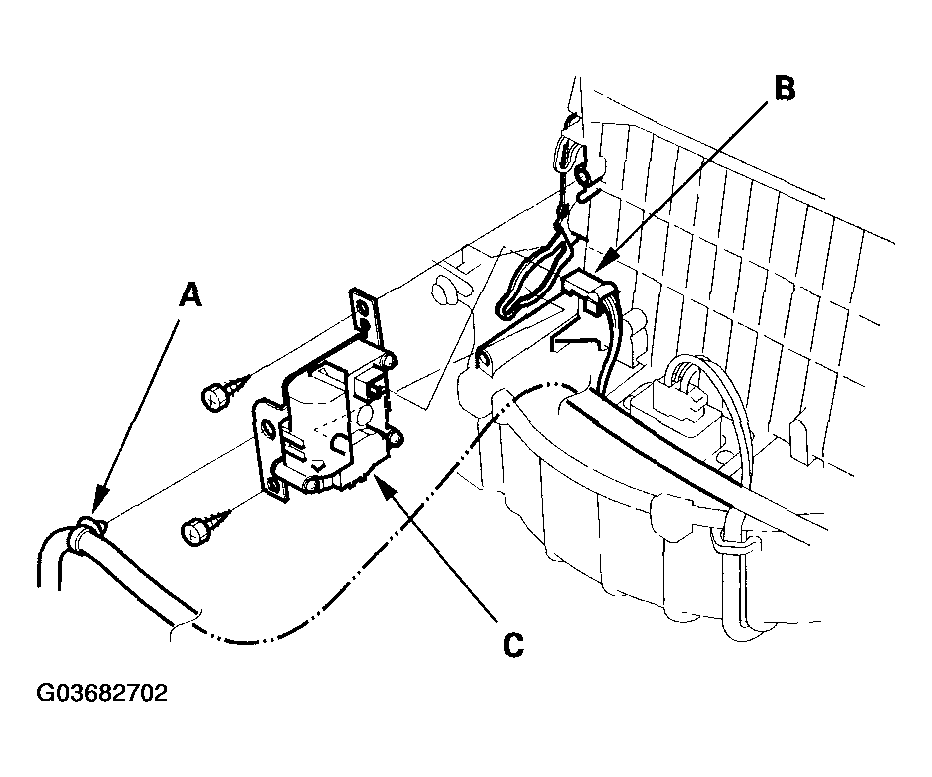

- Remove the wire harness clip (A), then disconnect the 4P connector (B) from the recirculation control motor (C). Remove the self-tapping screws and the recirculation control motor from the blower unit.
- Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
