M/T model
- Turn the ignition switch ON (II).
Are the back-up lights on when the shift lever is not in reverse position?
- YES -Inspect the back-up light switch.
- NO -Go to step 2.
- Shift the transmission to reverse gear.
Do the back-up lights come on ?
- YES -Go to step 3.
- NO -Go to step 4.

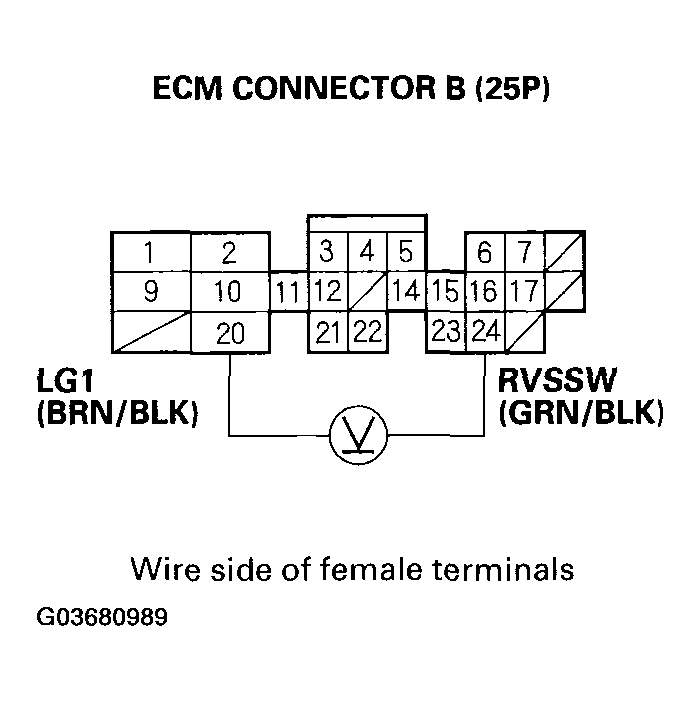

- Measure voltage between ECM connector terminals B24and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage ?
- YES -The back-up light switch signal is OK.
- NO -Repair open in the wire between the ECM (B24) and the back-up light switch.
- Inspect the No. 27 (7.5 A) fuse in the under-dash fuse/relay box.
Is the fuse OK ?
- YES -Repair open in the wire between the back-up light switch and the No. 27 (7.5 A) fuse. Inspect the back-up light switch.
- NO -Repair short in the wire between the ECM (B24) and the No. 27 (7.5 A) fuse. Replace the No. 27 (7.5 A) fuse.
