2006 model

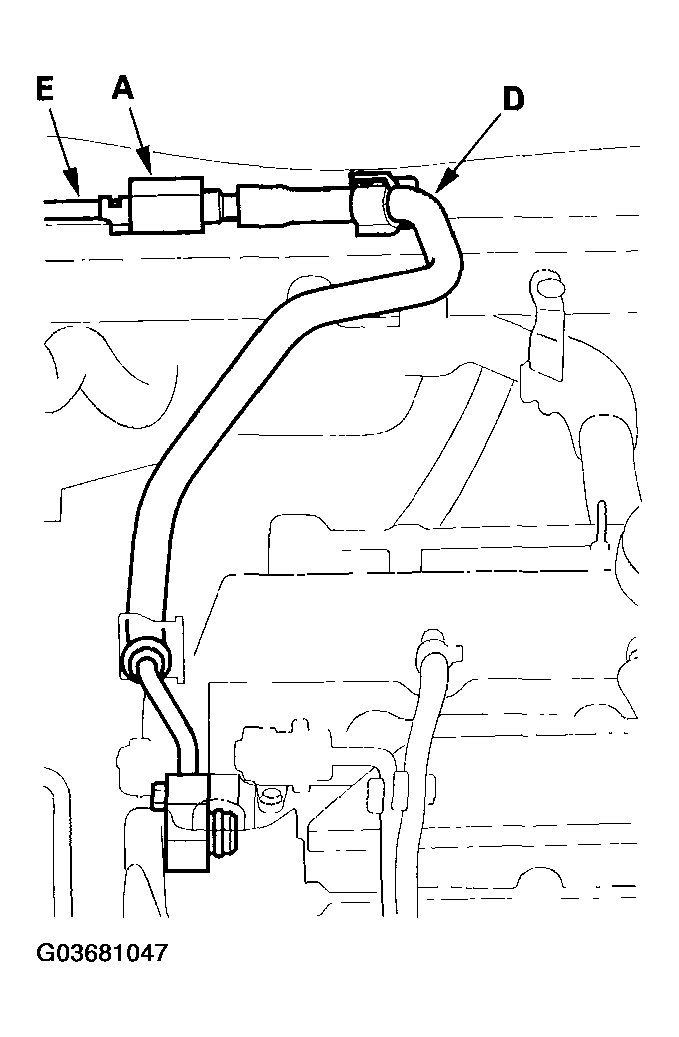

The fuel line/quick-connect fittings (A), (B), (C) connect the fuel feed hose (D) to the fuel line (E), the fuel line (F) to the fuel tank unit (G), and fuel vapor line (H) to the EVAP canister (I). When removing or installing the fuel feed hose, fuel tank unit or fuel tank, it is necessary to disconnect or connect the quick-connect fittings.
Pay attention to the following:
- The fuel feed hose, fuel line and quick-connect fittings are not heat-resistant; be careful not to damage them during welding or other heat-generating procedures.
- The fuel feed hose, fuel line and quick-connect fittings are not acid-proof; do not touch them with a shop towel that was used for wiping battery electrolyte. Replace them if they come in contact with electrolyte or something similar.
- When connecting or disconnecting the fuel feed hose, fuel line and quick-connect fittings, be careful not to bend or twist them excessively. Replace them if they are damaged.
