2000 Honda Insight

FTP Sensor Replacement

2000 Honda InsightSECTION FTP Sensor Replacement

Remove the EVAP canister.
2000-2005 models: Remove the EVAP bypass solenoid valve (A) from the stay, then remove the FTP sensor (B).

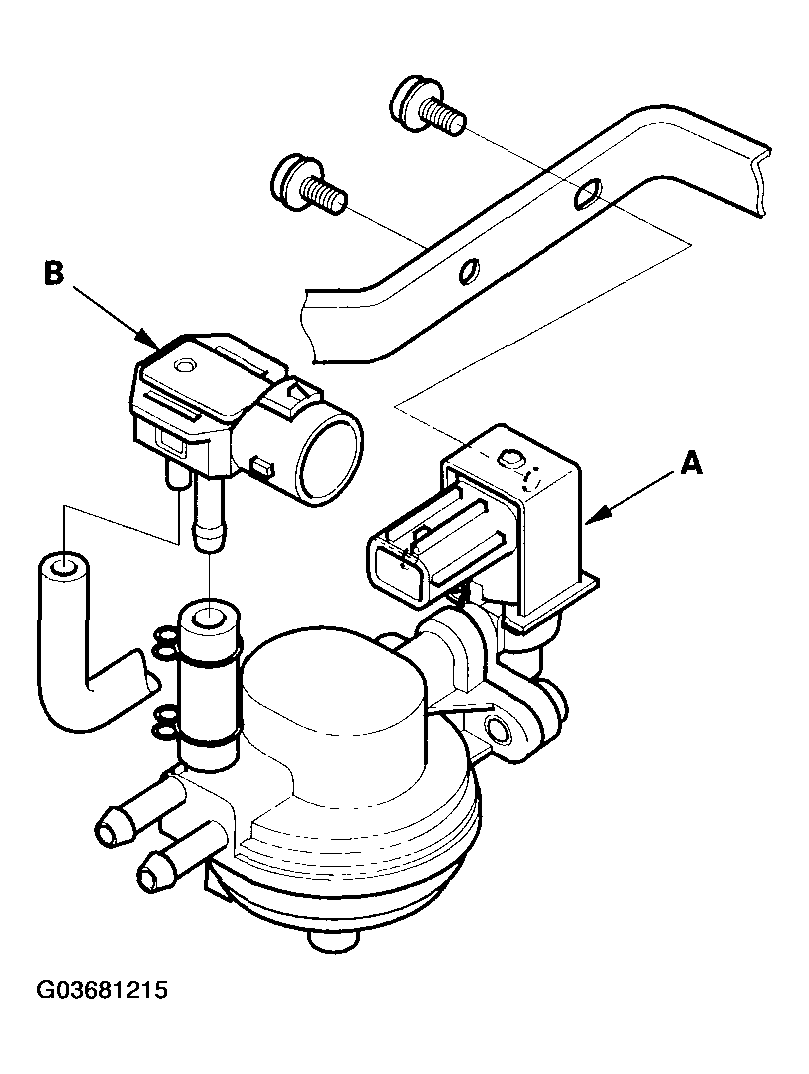

Fig 1: Removing FTP Sensor (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2006 model: Remove the clip (A) from the EVAP canister, then remove the FTP sensor (B).

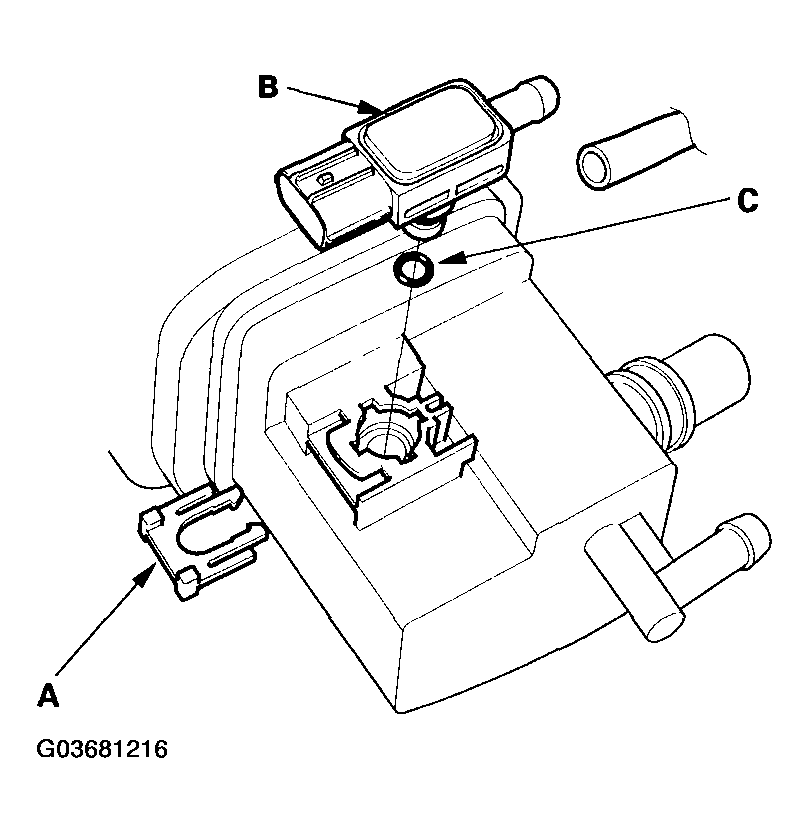

Fig 2: Removing FTP Sensor (2006 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2006 model: Install the new O-ring (C) in the sensor.
Install the sensor in the reverse order of removal.
