2000 Honda InsightFACTORY OEM SERVICE PROCEDURE

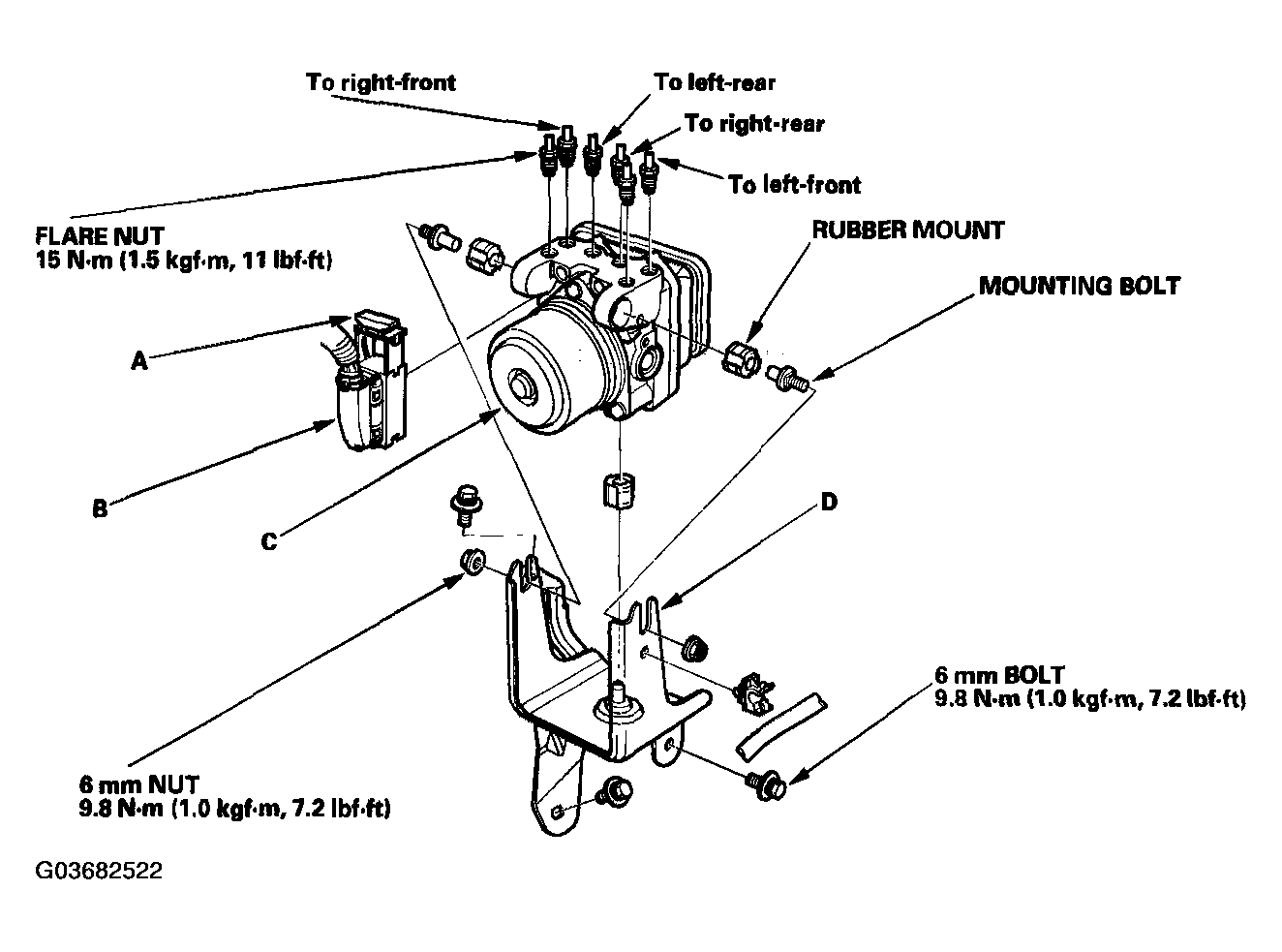

ABS Modulator-Control Unit Removal and Installation: Removal
- Pull up the lock (A) of the ABS modulator-control unit 25P connector (B), then disconnect the connector.
- Disconnect the six brake lines.
- Remove the two 6 mm nuts.
- Remove the ABS modulator-control unit (C) from the bracket (D).
