Trim Removal/Installation - Cargo Area
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.
- Remove the child seat tether anchor (see CHILD SEAT TETHER ANCHOR REMOVAL/INSTALLATION ).

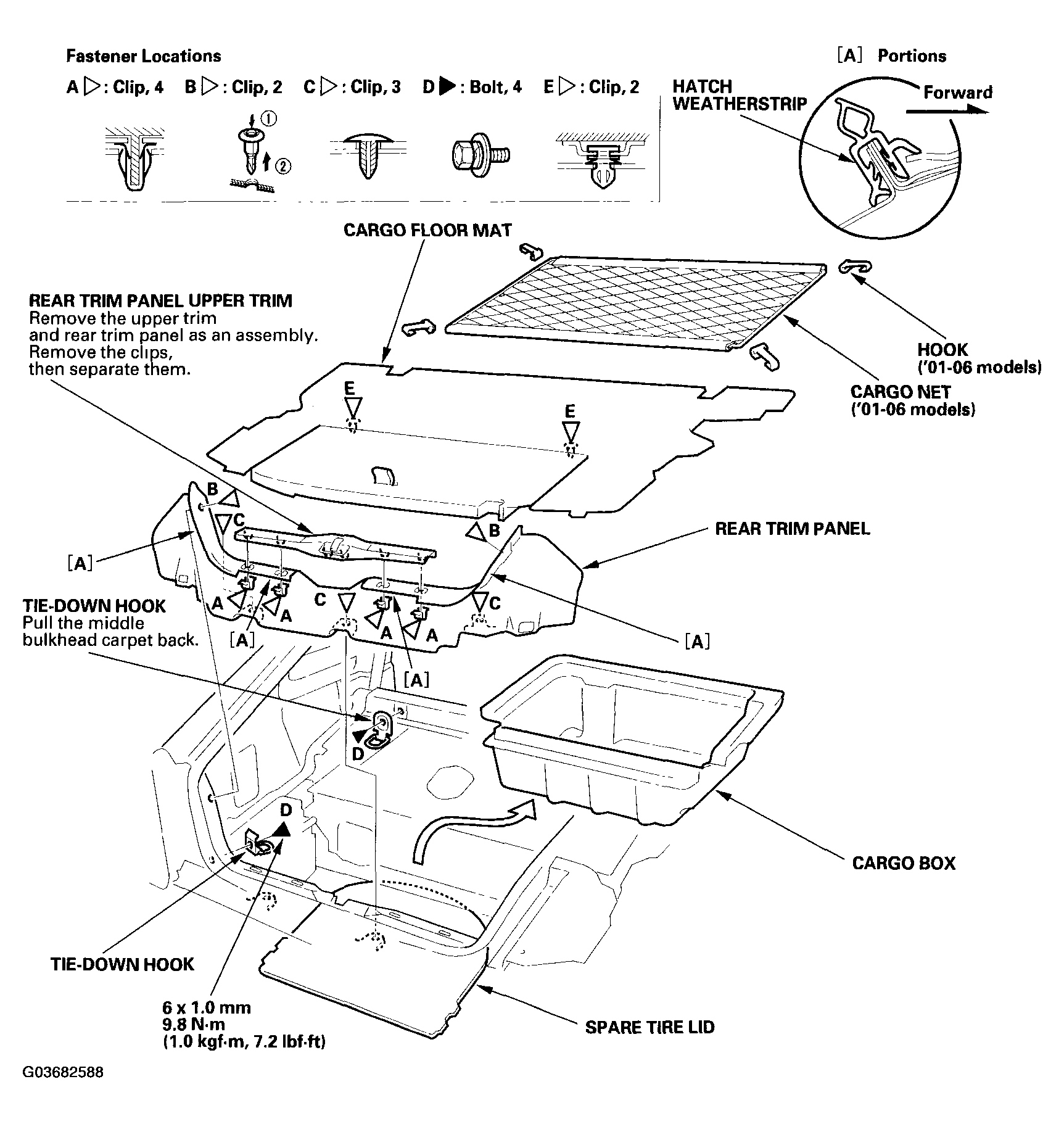

- Remove the trim as shown.
- Install the trim in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
