2000 Honda InsightFACTORY OEM SERVICE PROCEDURE

Passenger's Door Lock Actuator Test

  1. Remove the passenger's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the actuator (B).

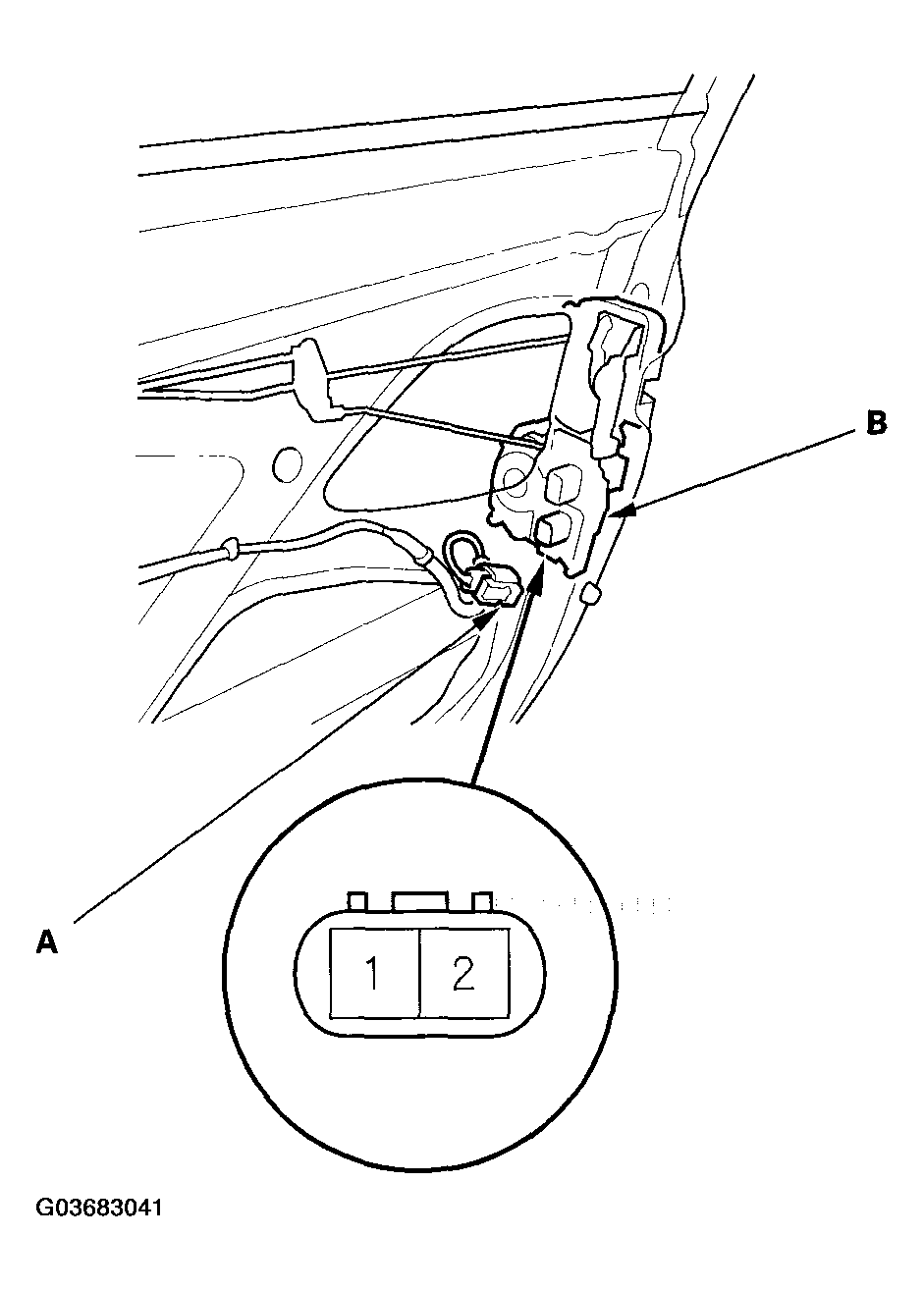

    Fig 1: Disconnecting 2P Connector From Actuator
    G03683041Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

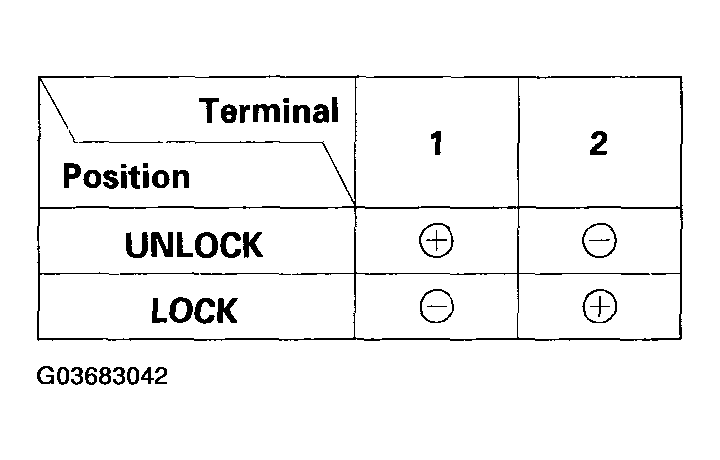

    Fig 2: Power And Ground Connection Reference Table
    G03683042Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace the passenger's door lock actuator.
