2000 Honda InsightFACTORY OEM SERVICE PROCEDURE
Ceiling Light/Spotlight Test/Replacement
- Turn the ceiling light/spotlights switches OFF.

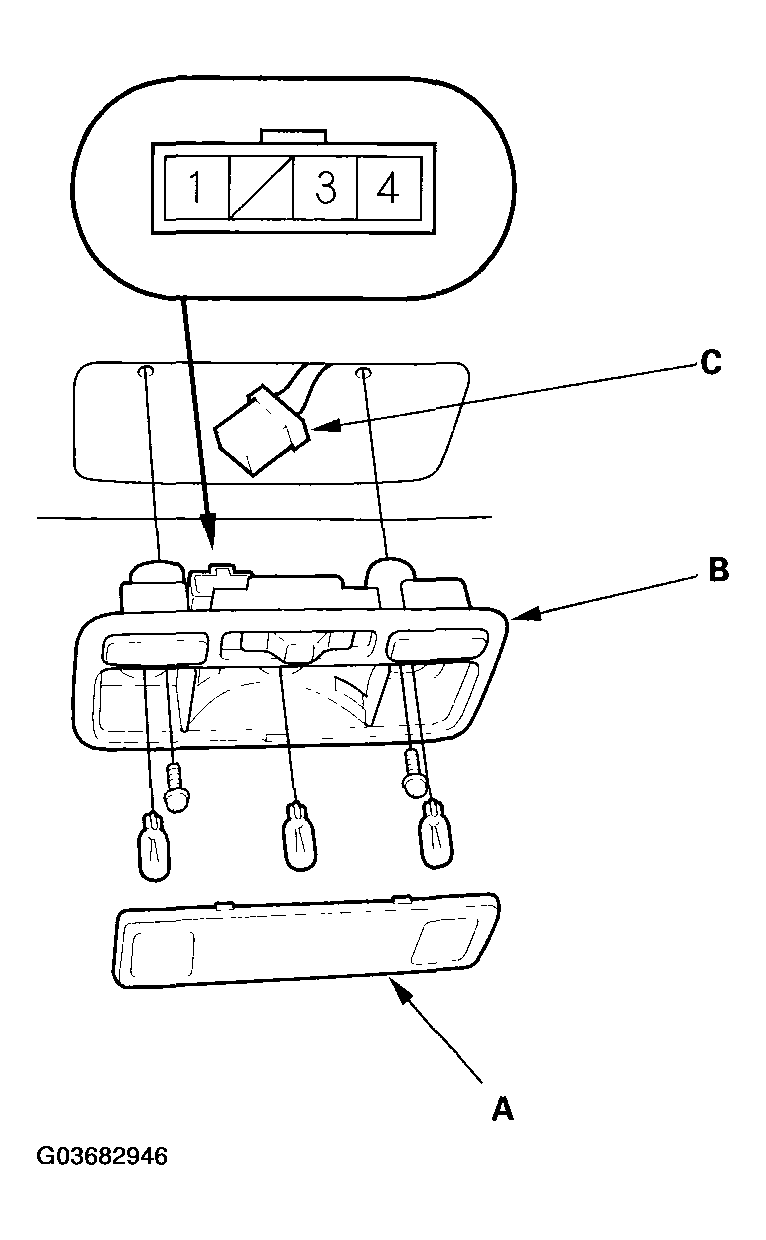

- Carefully pry off the lens (A) with a small screwdriver.
CEILING LIGHT: 5W
SPOTLIGHT: 5W
- Remove the two screws and the housing (B).
- Disconnect the 4P connector (C) from the housing.

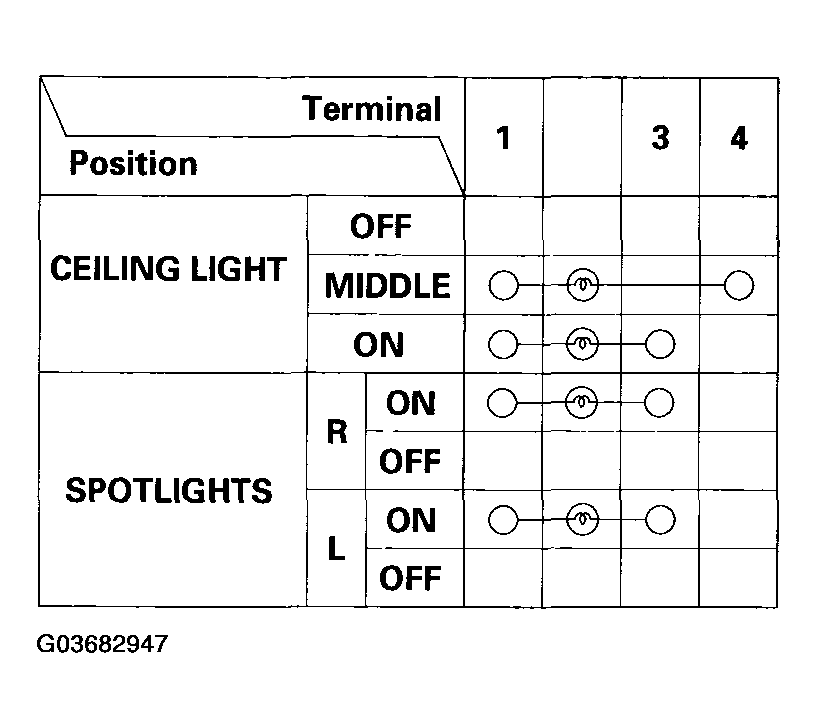

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, check the bulbs. If the bulbs are OK, replace the light.
- When installing the ceiling/spotlights housing, if the thread in the ET screw is worn out, use an oversized ET screw made specifically for this application.
