2000 MODEL COVERAGE

MODEL

ENGINE ⁽¹⁾

BODY/ENGINE CODE ⁽²⁾

FUEL SYSTEM

IGNITION SYSTEM ⁽³⁾

Civic

1.6L 4-Cyl. (D16Y7)

EJ6

SFI

Magnetic

Civic

1.6L 4-Cyl. (D16Y5) ⁽⁵⁾

EJ7

SFI

Magnetic

Civic

1.6L 4-Cyl. (D16Y8) ⁽⁴⁾

EJ8

SFI

Magnetic

Civic

1.6L 4-Cyl. (B16A2) ⁽⁴⁾⁽⁶⁾

EM1

SFI

Magnetic

CR-V

2.0L 4-Cyl. (B20Z2) ⁽⁶⁾

RD1

SFI

Magnetic

CR-V

2.0L 4-Cyl. (B20Z2) ⁽⁶⁾

RD2

SFI

Magnetic

Passport

3.2L V6 (6VD1) ⁽⁶⁾

K (2WD)/W

SFI

DIS

Passport

3.2L V6 (6VD1) ⁽⁶⁾

M (4WD)/W

SFI

DIS

Prelude

2.2L 4-Cyl. (H22A4) ⁽⁴⁾⁽⁶⁾

BB6

SFI

Magnetic

⁽¹⁾	Engine Code is the first 5 characters of the 12 characters stamped or tagged on engine block.

⁽²⁾	On all models except Passport, Body/Engine ID is the fourth, fifth and sixth digits of VIN. On Passport, Body/Engine ID is the fifth, sixth, seventh and eighth digits of VIN.

⁽³⁾	Ignition timing is controlled by Powertrain Control Module (PCM).

⁽⁴⁾	Variable Valve Timing with Electronic Control (VTEC) system.

⁽⁵⁾	VTEC-E system.

⁽⁶⁾	Dual Overhead Camshafts (DOHC).

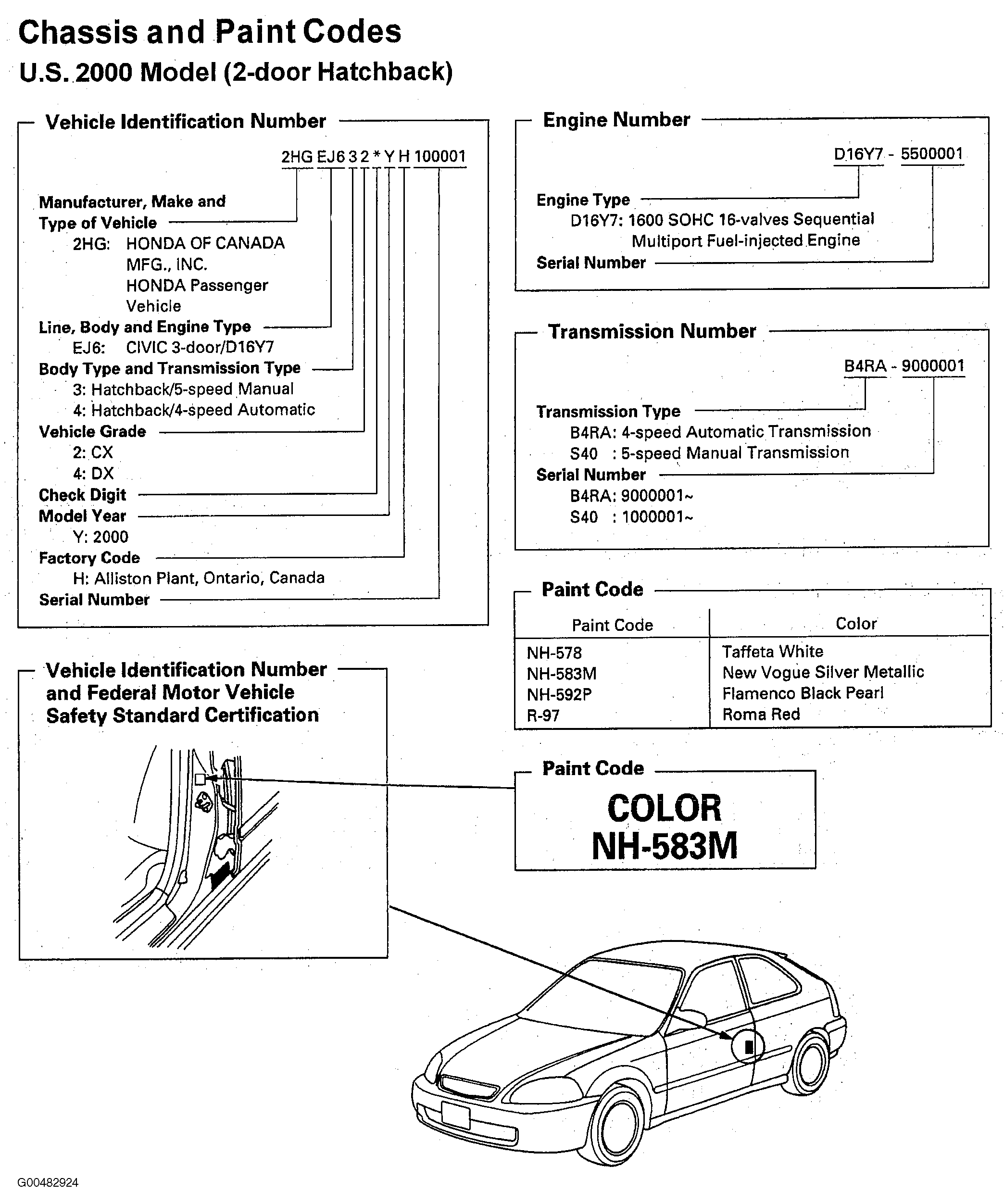

Fig 1: Chassis & Paint Codes (U.S. Model, Civic 2-door Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
