Retrieving Codes

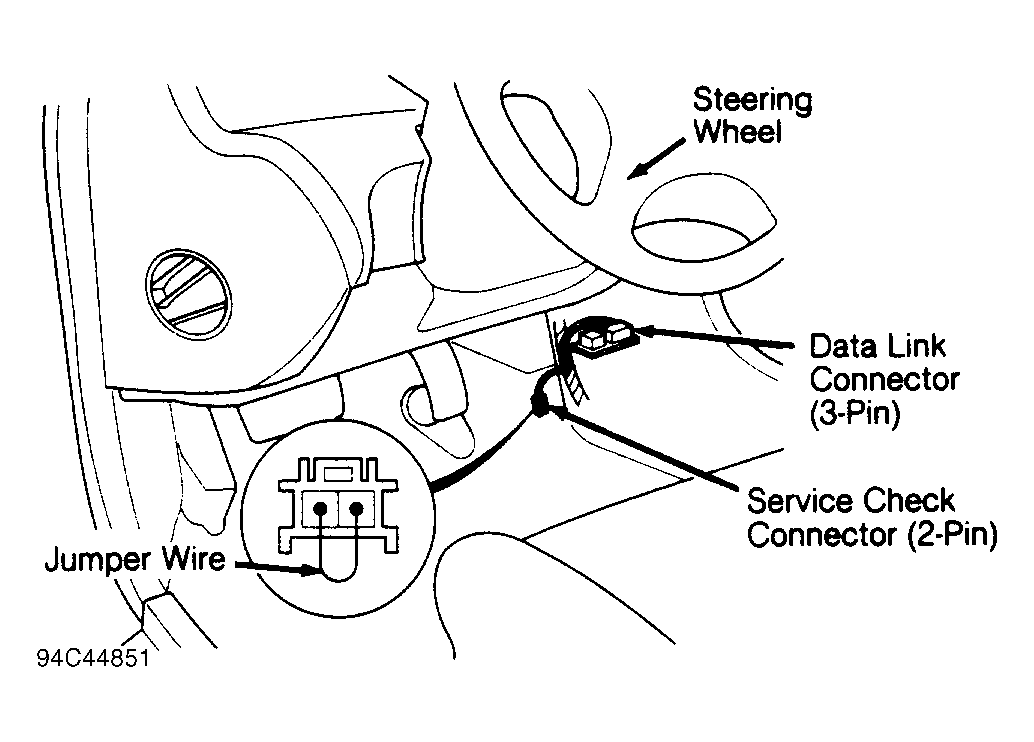

Turn ignition off. Insert jumper wire in service check connector, located behind center console. See Fig 1 .
Turn ignition on. Diagnostic Trouble Codes (DTCs) will be indicated by a series of long and short flashes on MIL. The number of long flashes indicates the number in the 10s column. The number of short flashes indicates the number in the 1s column. For example, 4 long flashes followed by 3 short flashes would indicate DTC 43.
See DIAGNOSTIC TROUBLE CODE IDENTIFICATION TABLE and proceed to appropriate TROUBLE CODE CHART for testing. All voltage tests should be performed with a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance, unless specifically stated differently in testing procedure.
