1983 Honda Prelude Automatic
Throttle Control Valve
1983 Honda Prelude AutomaticSECTION Throttle Control Valve

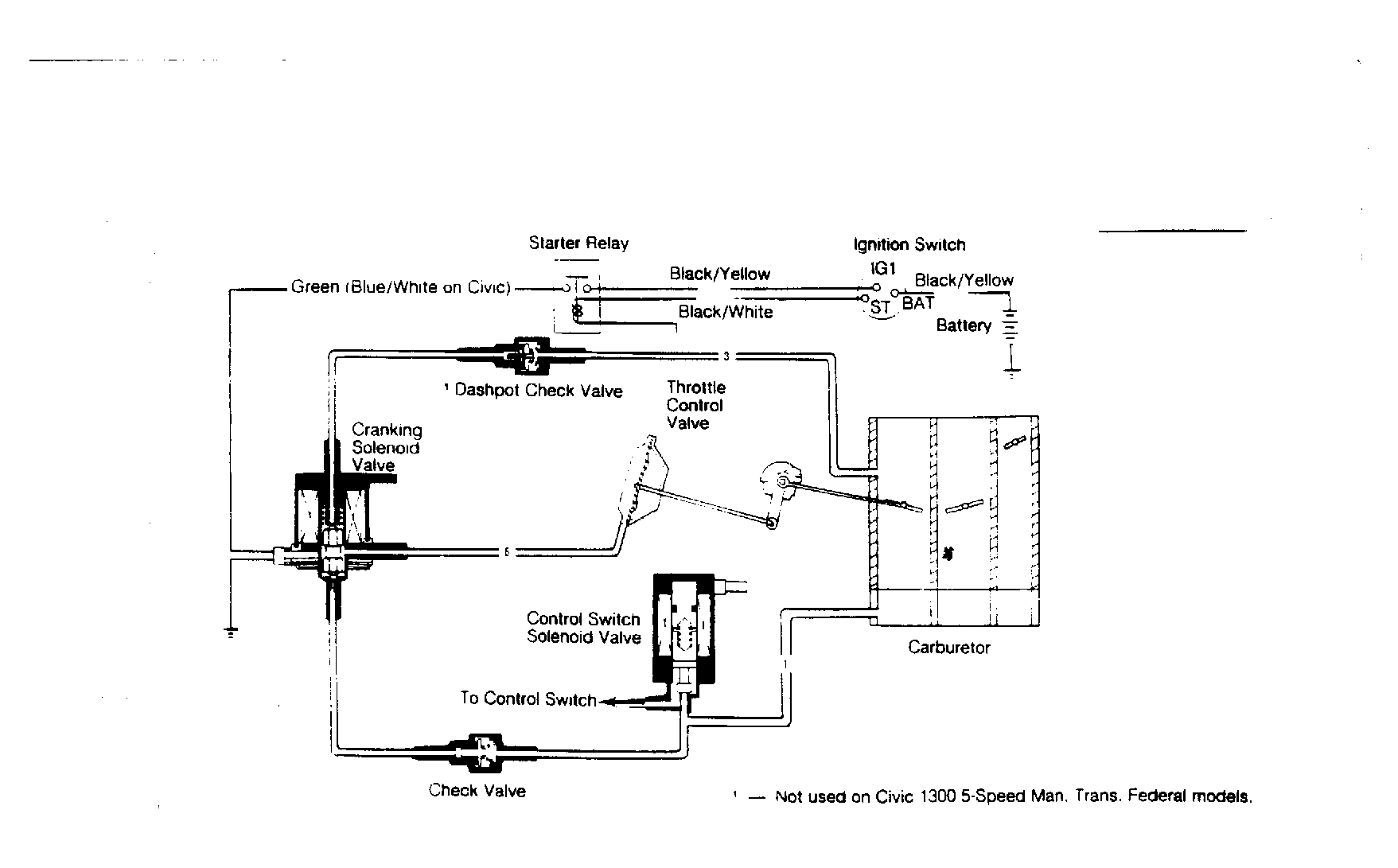

This system aids engine starting. As starter is engaged, the cranking solenoid valve is activated through the starter relay to allow intake manifold vacuum into the diaphragm. This helps to maintain the correct throttle opening angle.
