1982 Honda Prelude Automatic TransFACTORY OEM SERVICE PROCEDURE
Dashpot System Check
- Connect tachometer to engine. Start engine and allow to reach normal operating temperature (cooling fan on). Disconnect vacuum hose from throttle control valve.
- Connect hand vacuum pump to throttle control valve and apply 8 in. (200 mm) Hg vacuum. Check that engine speed rises (within 1 minute) to 1500-2500 RPM on Accord and Prelude models or 1200-2200 RPM on Civic models.

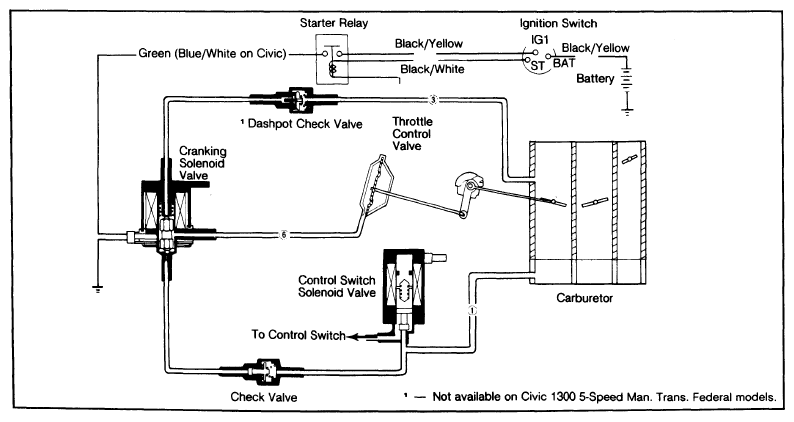

- If speed was too low, widen the adjusting slot in the throttle control valve lever with a screwdriver. If speed was too high, narrow the slot with pliers. If speed cannot be adjusted, or diaphragm will not hold vacuum, replace the throttle control valve and retest. See Fig 2.
