A malfunction in the throttle position sensor circuit will set DTC 41. For testing and adjusting procedures, see THROTTLE POSITION (TP) SENSOR in ADJUSTMENTS - 1.6L article. Use the following procedure to diagnose TP sensor.
Using ohmmeter, measure resistance or continuity of throttle position sensor between designated terminals with selected feeler gauge thickness between throttle lever and stop screw. See Fig 1 . Adjust or replace TP sensor if resistance is not within specification. See THROTTLE POSITION (TP) SENSOR RESISTANCE table.

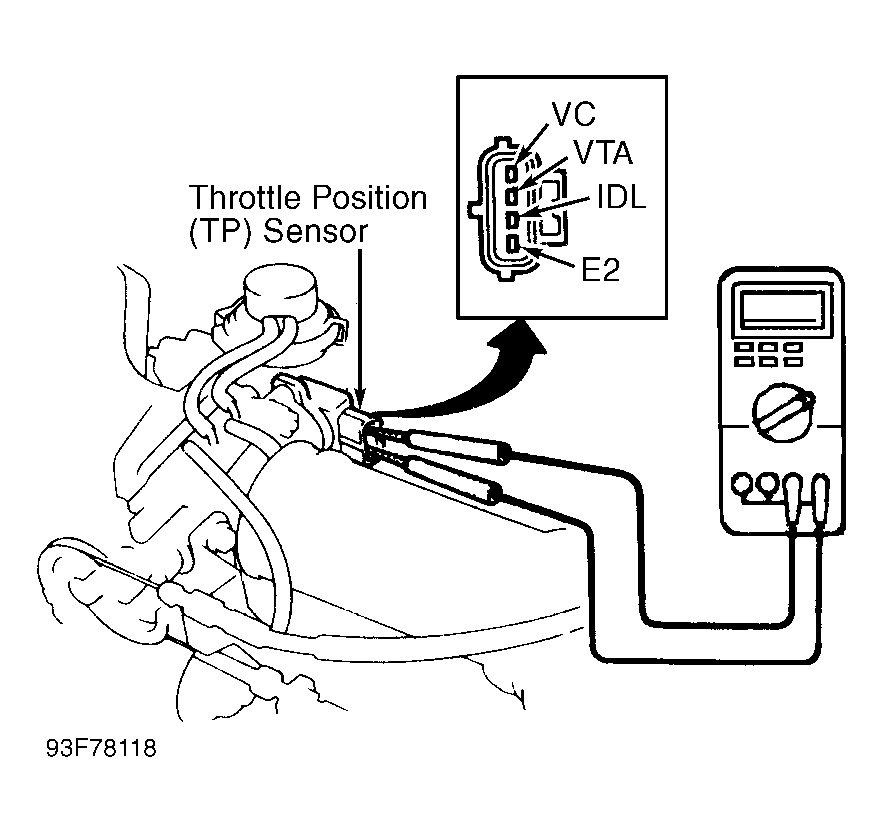

Fig 1: Identifying TP Sensor Terminals (1.6L Prizm)

Courtesy of GENERAL MOTORS CORP.

THROTTLE POSITION (TP) SENSOR RESISTANCE

Application

Ohms

Between Terminals E2 & IDL

⁽¹⁾ 0-2300

Between Terminals E2 & IDL

⁽²⁾ Infinity

Between Terminals E2 & VC

3000-8500

Between Terminals E2 & VTA

⁽³⁾ 200-6000

Between Terminals E2 & VTA

⁽⁴⁾ 3300-10,000

⁽¹⁾	With .016" (.40 mm) feeler gauge installed between throttle stop screw and lever.

⁽²⁾	With .035" (.89 mm) feeler gauge installed between throttle stop screw and lever.

⁽³⁾	With zero clearance between throttle stop screw and lever.

⁽⁴⁾	Throttle valve at fully open position.
