1993 Geo Prizm Base, StandardFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

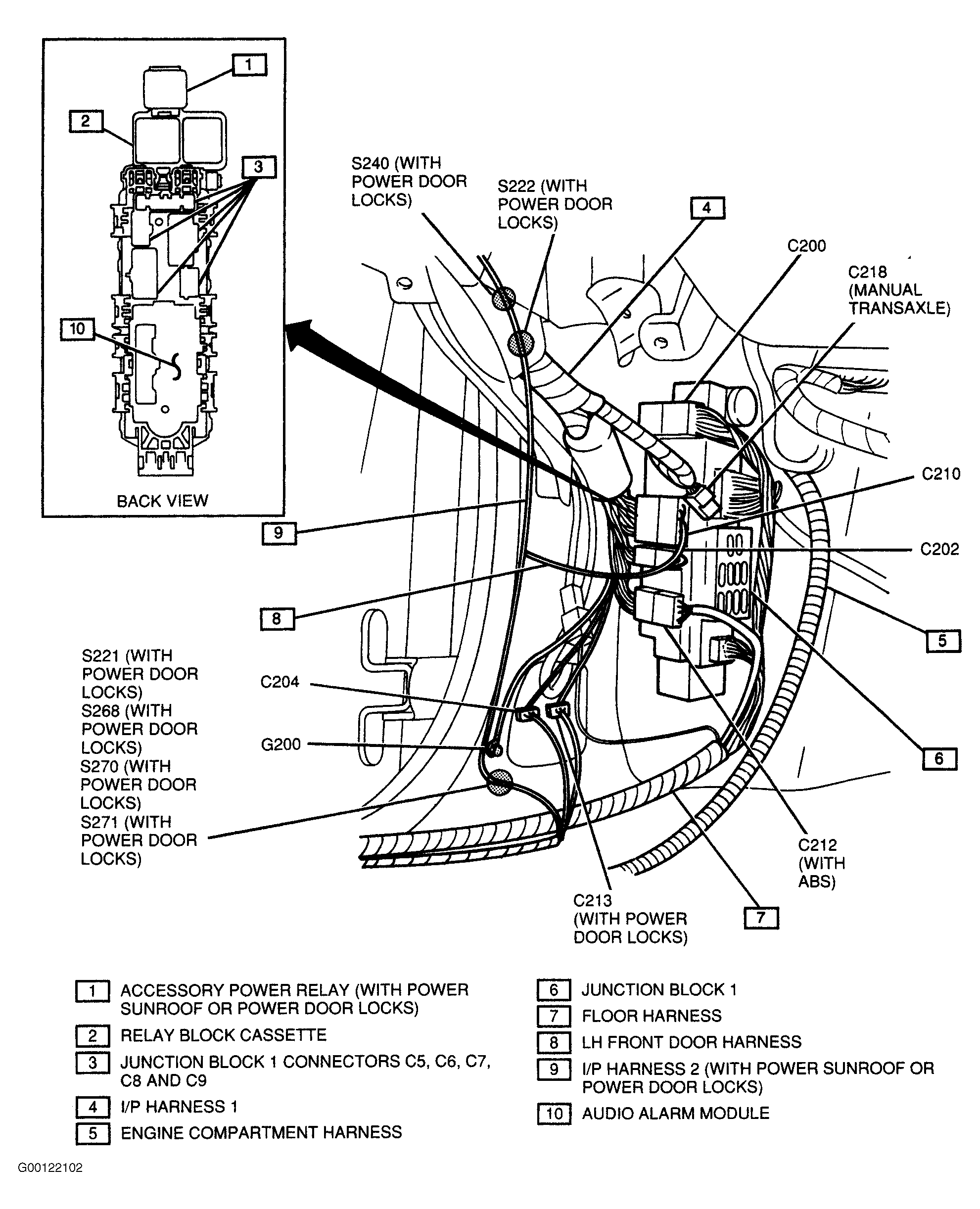

| Accessory Power Relay (With Power Door Locks or Power Sunroof) | Behind Left Kick Panel Attached to Relay Block Cassette. See Fig 1 . |
| Audio Alarm Module | Behind Left Kick Panel Mounted to Junction Block 1. See Fig 1 . |
| Junction 1 Connector (6 Cavities) | Behind Center I/P attached to Right I/P Support Brace. See Fig 2 . |
| Junction Block 1 | Lower Left Shroud behind Kick Panel. See Fig 1 . |
| Junction Block 3 | Behind Center I/P in Junction Block Retainer. See Fig 3 . |
| Left Front Power Window/Door Lock Switch | Left Front Door in Armrest. See Fig 4 . |
| Left Front Power Window Motor | In Left Front Door behind Trim Panel near Armrest. See Fig 4 . |
| Left Rear Power Window Motor | In Left Rear Door behind Trim Panel near Armrest. See Fig 5 . |
| Left Rear Power Window Switch | Left Door Trim Panel near Armrest. See Fig 5 . |
| Right Front Power Window Motor | In Right Front Door Trim Panel near Armrest. See Fig 6 . |
| Right Front Power Window Switch | Right Front Door in Armrest. See Fig 6 . |
| Right Rear Power Window Motor | In Right Rear Door behind Trim Panel near Armrest. See Fig 5 . |
| Right Rear Power Window Switch | Right Rear Door Trim Panel near Armrest. See Fig 5 . |
| C2 (22 Cavities) | I/P Harness 1 to Junction Block 3, behind Center I/P in Junction Block Retainer. See Fig 3 . |
| C3 (22 Cavities) | I/P Harness 1 to Junction Block 3, behind Center I/P in Junction Block Retainer. See Fig 3 . |
| C7 (16 Cavities) | I/P Harness 1 to Junction Block 1, Lower Left Shroud behind Kick Panel. See Fig 1 . |
| C204 (14 Cavities) | I/P Harness 1 to I/P Harness 2, behind Left Kick Panel in Connector Retainer Box. See Fig 3 . |
| G200 | Behind Left Kick Panel. See Fig 3 . |
| P200 | In Left "A" Pillar. See Fig 4 . |
| P201 | In Right "A" Pillar. See Fig 7 . |
| S502 | Left Front Door Harness. See Fig 4 . |
| S503 | Left Front Door Harness. See Fig 4 . |
