Fuel Pressure

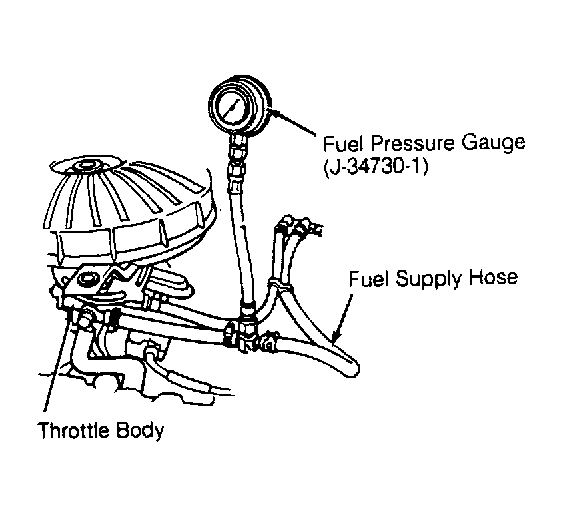

Release fuel pressure. See FUEL PRESSURE RELEASE . Disconnect negative battery cable. Remove air cleaner assembly. Remove fuel inlet hose from throttle body. Install Fuel Pressure Gauge (J-34730-1) and Adapter (J-34730-75). See Fig 1 . Reconnect negative battery cable. Check fuel pressure. SeeFigure , Figure and Figure . Release fuel pressure. Remove fuel pressure gauge.
| Application | Pressure: psi (kg/cm2 ) | ||
|---|---|---|---|
| Metro | (1) 23-30 (1.6-2.1) | ||
|
|||
