1993 Geo Metro LSi, 2D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Position (TP) Sensor
NOTE:

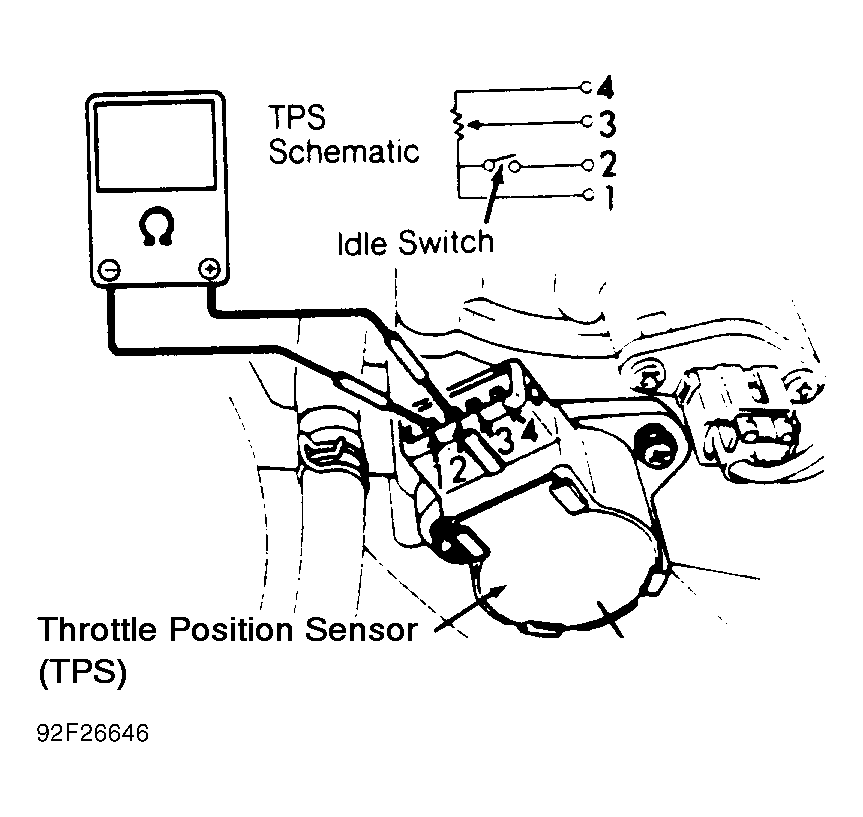

To identify TP sensor terminals, see Fig 1.
THROTTLE POSITION (TP) SENSOR RESISTANCE
| Application | Ohms | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Between Terminals 1 & 2 (1) | 0-5000 | ||||||||
| Between Terminals 1 & 2 (2) | Infinity | ||||||||
| Between Terminals 1 & 2 (3) | 0-5000 | ||||||||
| Between Terminals 1 & 3 (3) | 240-1140 | ||||||||
| Between Terminals 1 & 3 (4) | 3170-6600 | ||||||||
| Between Terminals 1 & 4 | 4370-8130 | ||||||||
|
|||||||||
