1992 Geo Tracker LSi, AutomaticFACTORY OEM SERVICE PROCEDURE

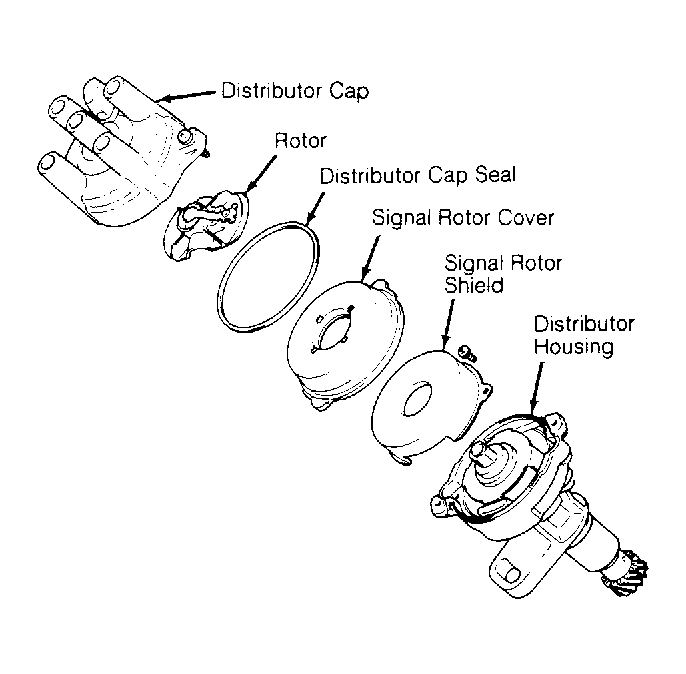

Installing Distributor After Engine Has Been Rotated
- Rotate crankshaft until No. 1 piston is at TDC on compression stroke. Ensure timing marks on crankshaft pulley and timing cover are aligned to TDC position.
- Align distributor drive mark with housing mark, or turn distributor rotor to No. 1 spark plug terminal on cap and install distributor. Start engine and set timing to specification. See IGNITION TIMING in ADJUSTMENTS article in this section.
