1992 Geo Prizm Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Locations
Component Locations
| Component | Location |
|---|---|

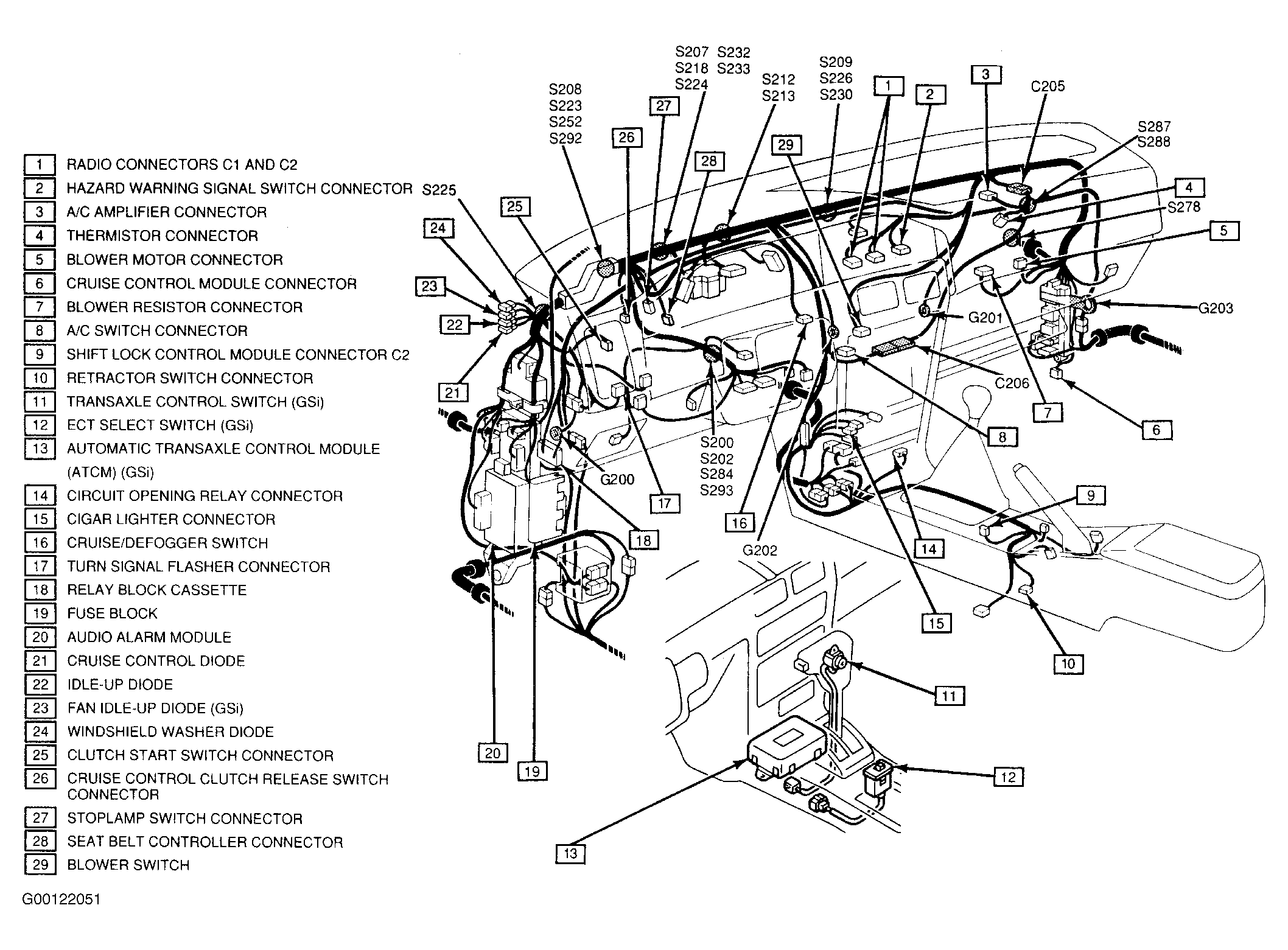

| Audio Alarm Module | Mounted To Junction Block 1. See Fig 1 . |
| Junction Block 1 (Base, LSi) | Lower Left Shroud. See Fig 2 . |
| Junction Block 1 (GSi) | Lower Left Shroud. See Fig 3 . |
| Junction Block 3 | Behind Instrument Panel Support Brace Above Steering Column. See Fig 2 or Fig 3 . |
| Junction Block 3 Connector C3 (12 Cavities) | Cowl Harness To Junction Block 3, Behind Instrument Panel Support Brace Above Steering Column. See Fig 6 . |
| Left Front Window Motor Connector | Left Front Door. See Fig 5 . |
| Left Rear Window Motor Connector | Left Rear Door. See Fig 5 . |
| Left Rear Window Switch Connector | On Door Armrest. See Fig 5 . |
| Right Front Window Motor Connector | Right Front Door. See Fig 5 . |
| Right Front Window Switch Connector | On Door Armrest. See Fig 5 . |
| Right Rear Window Motor Connector | Right Rear Door. See Fig 5 . |
| Right Rear Window Switch Connector | On Door Armrest. See Fig 5 . |
| Window Circuit Breaker/Relay Retainer (Cassette) | Behind Left Kick Panel Near Junction Block 1. See Fig 1 . |
| Window Master Switch Connector | Left Front Door Armrest. See Fig 5 . |
| C204 (5 Cavities) | Instrument Panel Harness To Cowl Harness, Lower Left Shroud. See Fig 4 . |
| C209 (15 Cavities) | Left Front Door Harness To Floor Harness, Behind Left Kick Panel. See Fig 4 . |
| C211 (10 Cavities) | Floor Harness To Instrument Panel Harness, Behind Left Kick Panel. See Fig 4 . |
| C213 (10 Cavities) | Right Front Door Harness To Instrument Panel Harness Behind Right Kick Panel. See Fig 4 . |
| C310 (8 Cavities) | Floor Harness To Left Rear Door Harness, Near Base Of Left "B" Pillar. See Fig 5 . |
| C312 (8 Cavities) | Floor Harness To Right Rear Door Harness, Near Base Of Right "B" Pillar. See Fig 5 . |
| S222 | Instrument Panel Harness, Behind Left Side Of Instrument Panel. See Fig 4 . |
| S225 | Cowl Harness, Behind Left Side Of Instrument Panel. See Fig 1 . |
| S234 | Instrument Panel Harness, Behind Left Side Of Instrument Panel. See Fig 4 . |
| S236 | Instrument Panel Harness, Behind Left Side Of Instrument Panel. See Fig 4 . |
| S300 | Floor Harness, Under Left Rear Seat. See Fig 4 . |
| S345 | Floor Harness, Behind Left Side Of Instrument Panel. See Fig 4 . |
| S346 | Floor Harness, Near Left Front Door. See Fig 4 . |
| G200 | Left Kick Panel. See Fig 1 . |
| G306 | Left "C" Pillar. See Fig 4 . |
