1991 Geo Tracker LSi, AutomaticFACTORY OEM SERVICE PROCEDURE
Code 53, Ground CKT Open (CALIF. Only)
On California vehicles, an additional ground is supplied to ECM. ECM supplies 5 volts to Black/Green wire through a buffer. ECM expects voltage to be low. This code is set if voltage is high for 3 seconds.
NOTE:

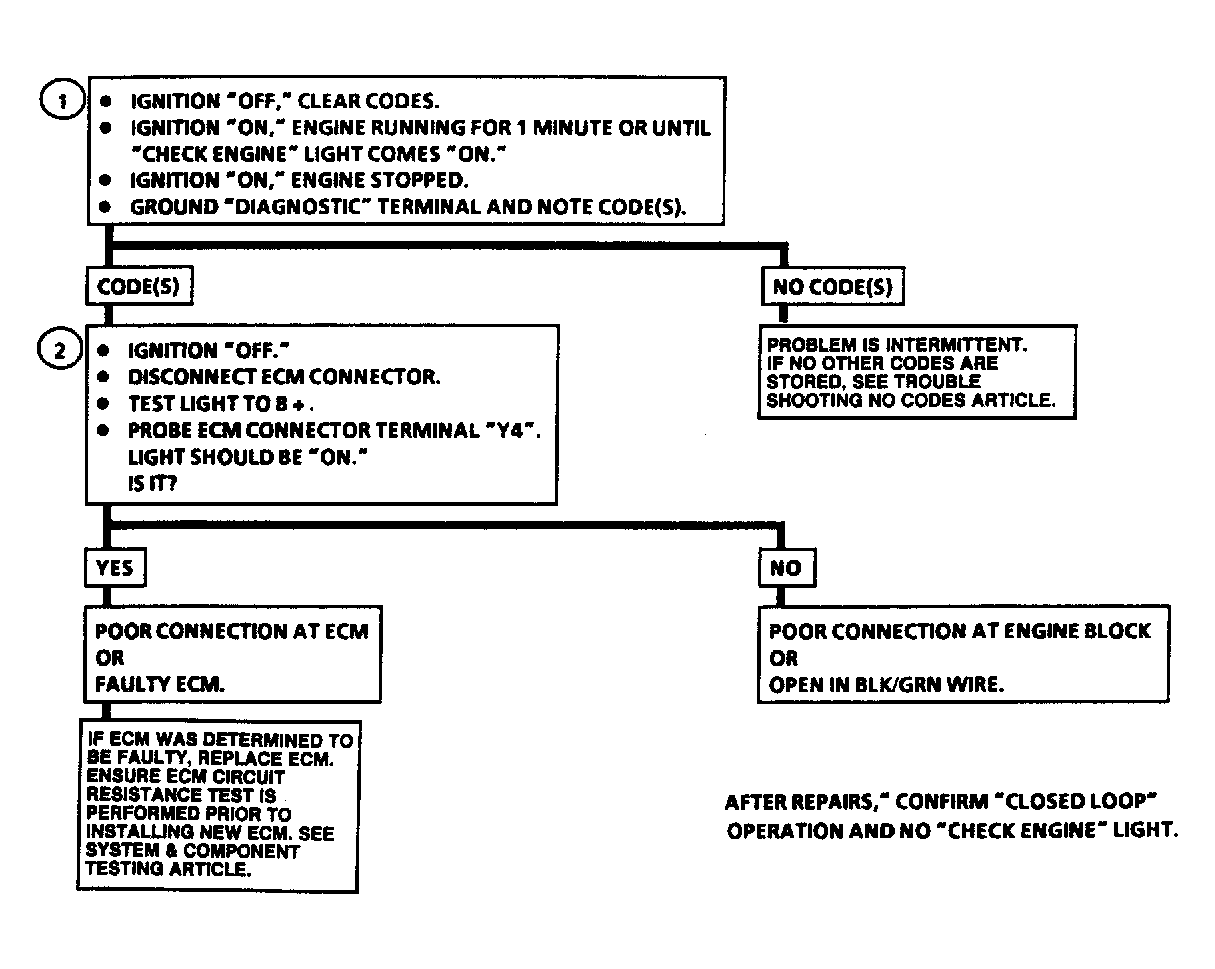

Test numbers refer to test numbers on diagnostic chart.
- This verifies Code 53 is not intermittent.
- With test light to battery positive, probing Black/Green wire checks for open circuit in wire to engine block.
