1991 Geo Tracker LSi, AutomaticFACTORY OEM SERVICE PROCEDURE
EFI Main Relay
NOTE:
The EFI main relay may be referred to as the main relay.

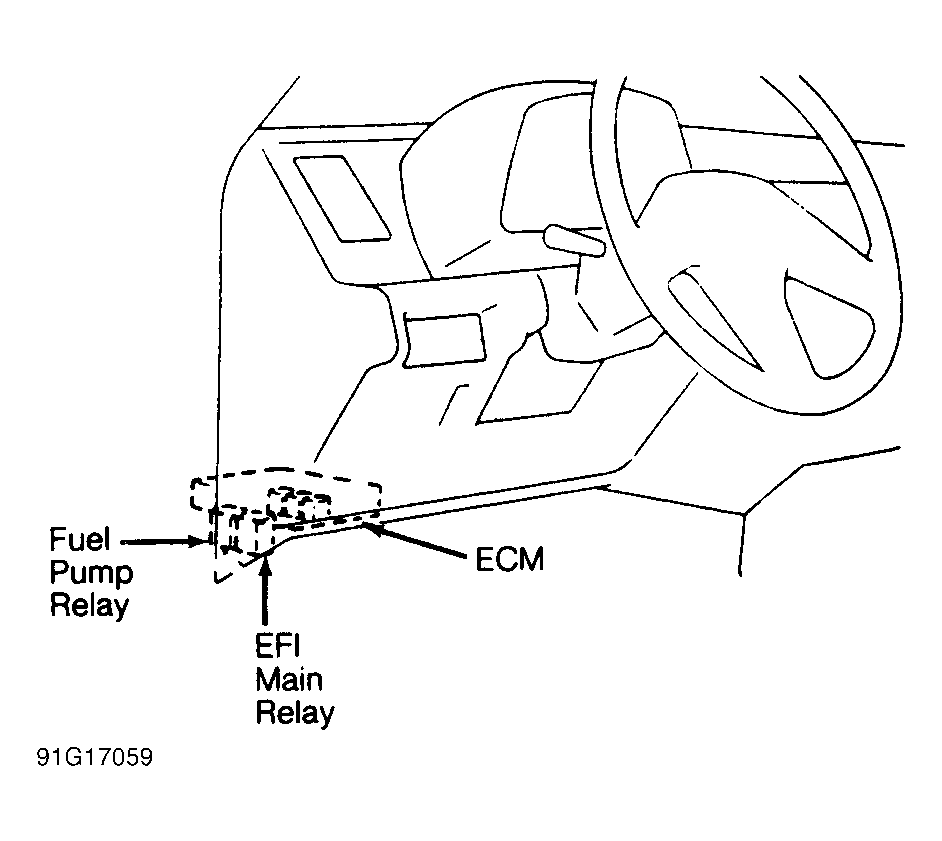

- The EFI main relay is mounted on the ECM, located under left side of instrument panel, near kick panel. See Fig 1 . Disconnect electrical connector from EFI main relay.
- Using ohmmeter, ensure continuity exists between Black/White wire and Blue wire terminals of EFI main relay. Apply battery voltage to Black/White wire terminal and ground Blue wire terminal. Continuity should exist between Black/Red and Blue/Black wire terminals. Replace EFI main relay if continuity is not as specified.
