2021 Genesis GV80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE
Rear wheel alignment: Camber

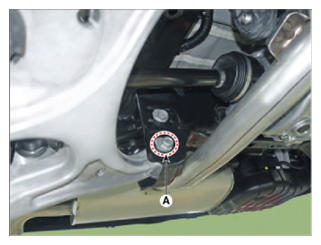

Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.
Camber: -1.5°±0.5°
| Cam bolt | Direction of rotation | Camber |
|---|---|---|
| Left side (Driver side) | clockwise | Decrease (-) |
| counterclockwise | Increase (+) | |
| Right side (Passenger side) | clockwise | Increase (+) |
| counterclockwise | Decrease (-) |
Information
- Variation per 1 scale: 0.19° when only adjusting the bolt of one side
