2021 Genesis GV80 2.5T Advanced, AWD
Repair Procedures: Disassembly
2021 Genesis GV80 2.5T Advanced, AWDSECTION Disassembly

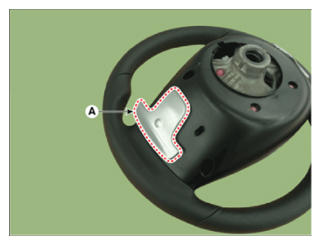

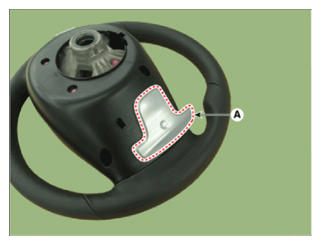

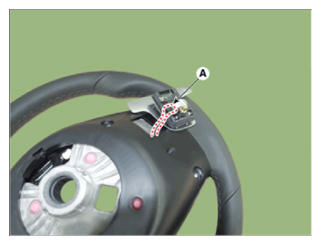

- Loosen the screw and then remove the paddle shift switch (A).

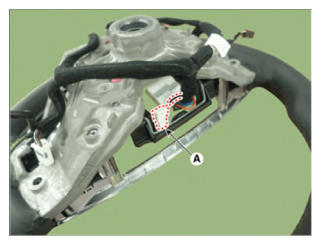

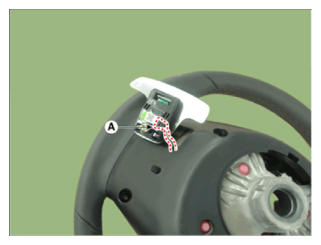

- Disconnect the paddle shift switch connector (A).

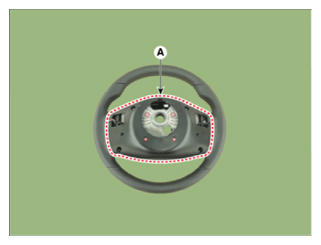

- Loosen the screw and then remove the lower cover (A).

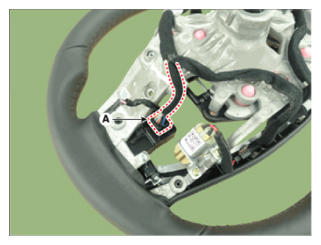

- Disconnect the remote control switch connector (A).

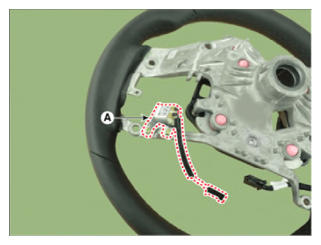

- Disconnect the ground connector (A).

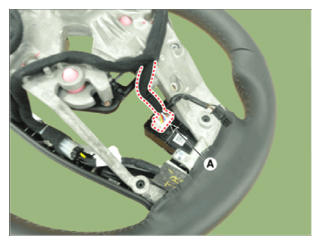

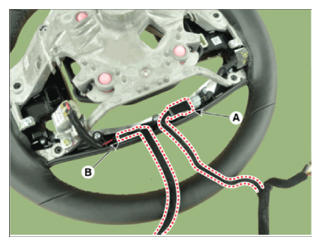

- Disconnect the heated steering wheel connector (A), Haptic motor connector (B) and then remove the wiring.

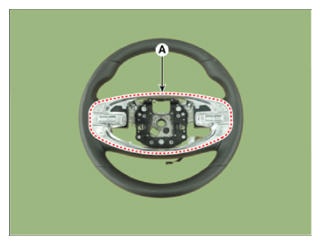

- Remove the remote control switch bezel (A).

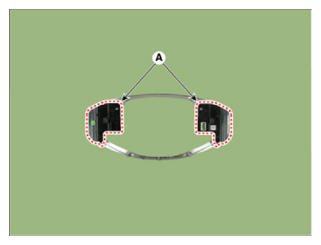

- Loosen the screw and then remove the remote control switch (A).
- Loosen the screw and then remove the haptic motor (A).
- Reassembly in the reverse order of disassembly.
