2021 Genesis GV80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE

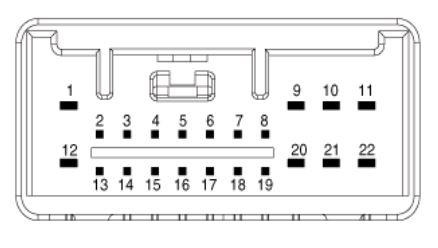

Terminal Function
| Pin No | Description |
|---|---|
| 1 | B + |
| 2 | Tilt sensor input |
| 3 | Tele sensor input |
| 4 | - |
| 5 | - |
| 6 | B-CAN (High) |
| 7 | B-CAN (Low) |
| 8 | Haptic motor down output |
| 9 | Haptic motor up output |
| 10 | Battery + power |
| 11 | Tilt motor down output |
| 12 | IG 1 |
| 13 | Position sensor power output |
| 14 | - |
| 15 | Tilt down switch input |
| 16 | - |
| 17 | - |
| 18 | Ground sensor |
| 19 | Ground |
| 20 | |
| 21 | Tele motor forward direction output |
| 22 | Tele motor backward direction output |
