Steering Column Module (SCM) Switch
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Wait at least 30 seconds after separating the cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

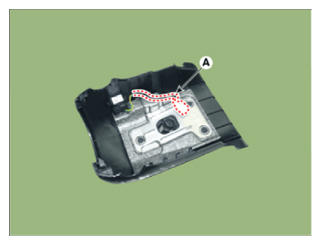

- Disconnect the steering module switch connector and clip (A).

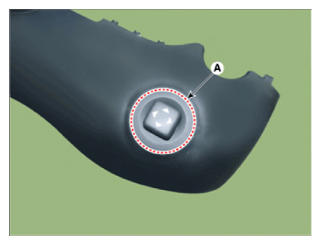

- Using the driver, remove the steering column module switch.
- Install in the reverse order of removal.
