2021 Genesis GV80 2.5T Advanced, AWDFACTORY OEM SERVICE PROCEDURE
ETC (Electronic Throttle Control) System: Specifications: Specification
- Type: Hall IC non-connect sensor typeΒ

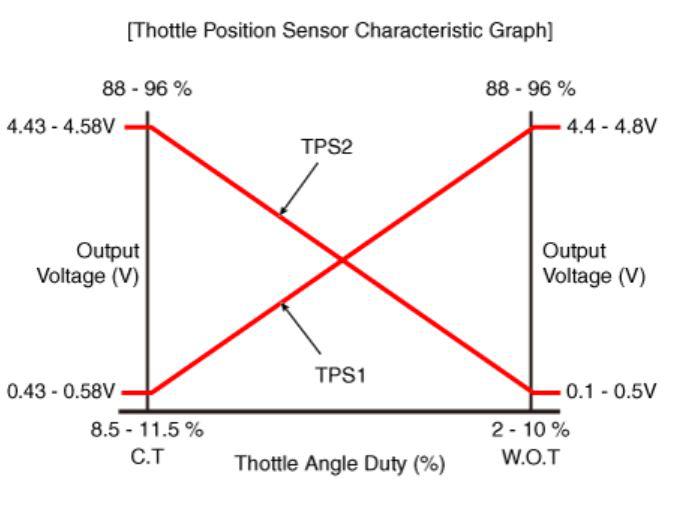

[TPS1]Β
| Item | Duty (%) | Output Voltage (V) [Supply Voltage = 5V] |
|---|---|---|
| C.T | 8.5 - 11.5% | 0.43 - 0.58 |
| W.O.T | 88 - 96% | 4.4 - 4.8 |
[TPS2]Β
| Item | Duty (%) | Output Voltage (V) [Supply Voltage = 5V] |
|---|---|---|
| C.T | 88.5 - 91.5% | 4.43 - 4.58. |
| W.O.T | 2 - 10% | 0.1 - 0.5 |
ETC MotorΒ
| Item | Specification | |
|---|---|---|
| New | Aged | |
| Coil Resistance (Ξ©) | 1.9 Β± 10% | R < 2.8 |
